Bộ micro không dây cầm tay TOA WS-5265

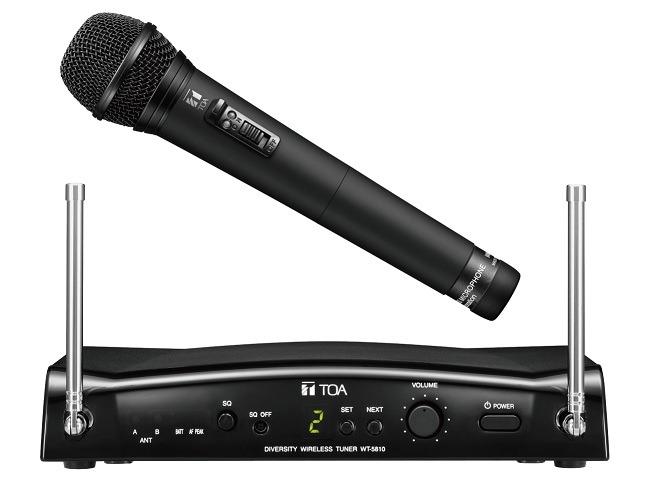

The WS-5265 includes a handheld wireless microphone WM-5265 and a diversity wireless tuner WT-5810. The WM-5265 wireless microphone employs an dynamic microphone capsule and is suitable for any applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.
Specifications
| Model | WS-5265 |
| Wireless microphone | |
| Microphone Element | Dynamic microphone unit: Unidirectional |
| Modulation | Frequency modulation |
| Channel Selectable | 64 channels (the number of channels may differ from country to country) |
| RF Carrier Power | Less than 50 mW (Factory preset 10 mW ERP) |
| Oscillator | PLL synthesized |
| Maximum Input Level | 132 dB SPL |
| Maximum Deviation | ±40 kHz |
| Audio Frequency Response | 100 Hz - 15 kHz |
| Antenna | Built-in type |
| Finish | Resin, coating |
| Weight | 205g |
| Diversity wireless tuner | |
| Power Source | AC mains (supplied AC adapter must be used) |
| Power Consumption | 130 mA (12 VDC) |
| Channel Selectable | 16 channels |
| Receiving System | Double super-heterodyne |
| Diversity System | Space diversity |
| Antenna | Whip antenna |
| Receiving Sensitivity | 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
| Squelch Sensitivity | 16 - 40 dBμV variable |
| Frequency Response | 100 Hz - 15 kHz, ±3 dB |
| Finish | Resin, black |
| Weight | 590g |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
