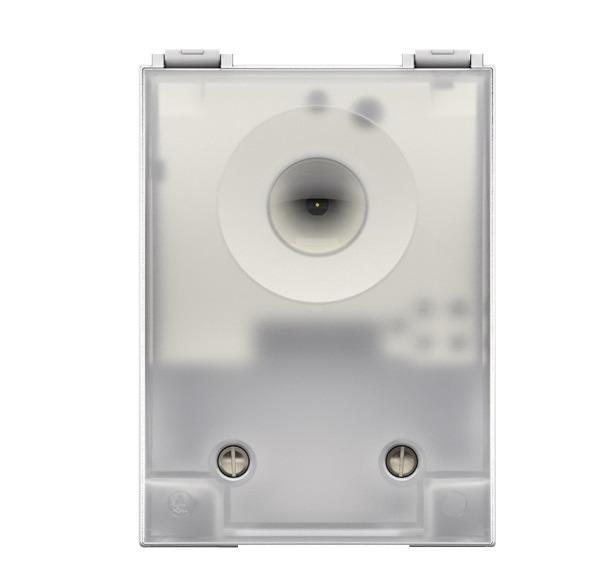

Twilight Switch With Integrated Light Sensor THEBEN LUNA 127 star S
- Part Number: 1270900.
- Twilight switch with integrated light sensor.
- Cable feed from the back and from below possible.
- Test function.
- Teach-in function.
- Timer function (1 hour on).
- Switchable brightness range: 2-100/ 100-2000 lux.
- Captive screws.
- Large terminal area.
- Brightness value can be set without opening the device.
- Large light exposure angle.
- Freely adjustable switching brightness.
Đặc tính kỹ thuật
| Model | LUNA 127 star S |
| Operating voltage | 230 VAC |
| Frequency | 50 – 60 Hz |
| Number of channels | 1 |
| Stand-by consumption | ~0.7 W |
| Setting range brightness | 2 – 2000 lx |
| Switch-on delay | 2 – 100 s |
| Switch-off delay | 2 – 100 s |
| Switching output | Not potential-free (230 V) |
| Installation type | Wall installation or mast bracket |
| Type of connection | Screw terminals |
| Switching capacity | 16A at 230 VAC, cos φ = 1, 10 AX at 230 VAC, cos φ = 0.3 |
| Incandescent/halogen lamp load | 2300 W |
| Halogen lamp load | 2300 W |
| LED lamp < 2 W | 50 W |
| LED lamp 2-8 W | 600 W |
| LED lamp > 8 W | 600 W |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -35°C ... 55°C |
| Type of protection | IP 55 |
| Protection class | II |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
