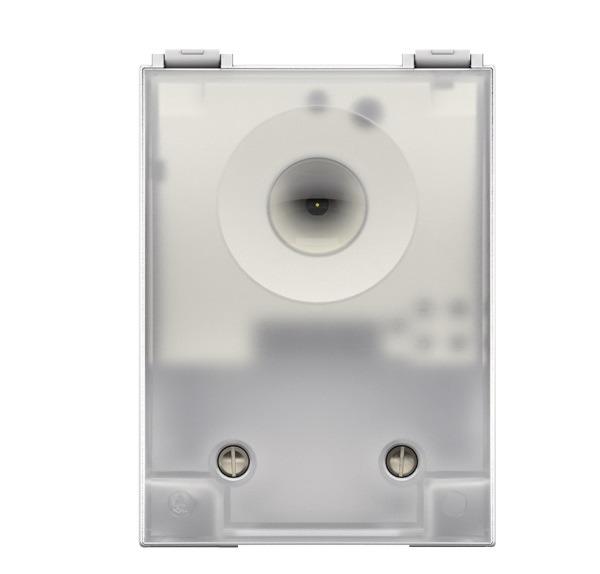

Twilight Switch With Integrated Light Sensor THEBEN LUNA 126 star E
- Part Number: 1260900.
- Twilight switch with integrated light sensor.
- Fixed switch-on and switch-off delay.
- To avoid inadvertent switching due in particular to lightning or car headlights.
- Cable routing possible from the back and bottom.
- Lid with snap-on opening for comfortable installation of the device.
- Captive screws.
- Large terminal block.
- Adjustment of the brightness value possible from the outside without opening the device.
- Wide detection angle (approx. 180 degrees).
- Continuously adjustable switching brightness.
Đặc tính kỹ thuật
| Model | LUNA 126 star E |
| Supply voltage | 230 VAC |
| Frequency | 50 - 60 Hz |
| Number of channels | 1 |
| Stand-by consumption | ~ 0.6 W |
| Setting range | 2 - 200 lx |
| Switch-on delay | 20s |
| Trigger delay | 80s |
| Type of contact | Closing contact |
| Switching output | Not potential free (230V) |
| Mounting type | Wall mounting or pole mounting |
| Connection type | Screw terminals |
| Switching power | 16A for 230 VAC, cos φ = 1, 10 AX for 230 VAC, cos φ = 0.3 |
| Charging of incandescent / halogen lamps | 2300 W |
| Halogen lamp charge | 2300 W |
| Charge of fluorescent tubes (RPE) | 350 W |
| LED lamp <2 W | 30 W |
| LED lamp 2-8 W | 350 W |
| LED lamp> 8 W | 350 W |
| Housing and insulation materials | High temperature resistant self-extinguishing thermoplastics |
| Ambient temperature | -35 ° C ... 55 ° C |
| Protection sign | IP 55 |
| Protection class | II |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
