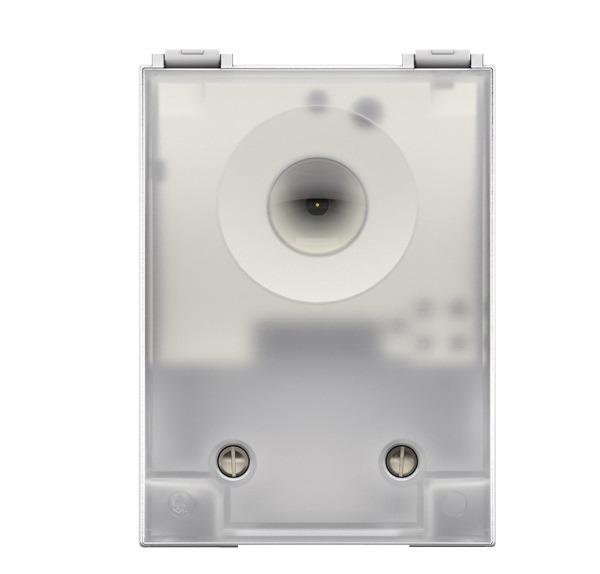

Twilight Switch With Integrated Light Sensor THEBEN LUNA 126 star E (1260901)
- Part Number: 1260901.
- Twilight switch with integrated light sensor.
- Fixed On and Off switching delay to avoid faulty operation caused by lightning, car headlights etc.
- Cable feed from the back and from below: Cover with snap-on function when opening for the straightforward installation of the device.
- Captive screws.
- Large terminal area.
- Brightness value can be set without opening the device.
- Large light exposure angle (approx. 180 degrees).
- Infinitely adjustable switching brightness.
Đặc tính kỹ thuật
| Model | LUNA 126 star E |
| Operating voltage | 230 VAC |
| Frequency | 50 – 60 Hz |
| Number of channels | 1 |
| Stand-by consumption | ~0,6 W |
| Setting range brightness | 2 – 200 lx |
| Switch-on delay | 20s |
| Switch-off delay | 80s |
| Type of contact | NO contact |
| Switching output | Not potential-free (230V) |
| Installation type | Wall installation or mast bracket |
| Type of connection | Screw terminals |
| Switching capacity | 16A (at 230VAC, cos φ = 1), 10 AX (at 230VAC, cos φ = 0.3) |
| Incandescent lamp load | 2300W |
| Halogen lamp load | 2300W |
| Fluorescent lamp load (electronic ballast) | 350W |
| LED lamp < 2W | 30W |
| LED lamp 2-8W | 350W |
| LED lamp > 8W | 350W |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -35 °C … +55 °C |
| Type of protection | IP 55 |
| Protection class | II |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
