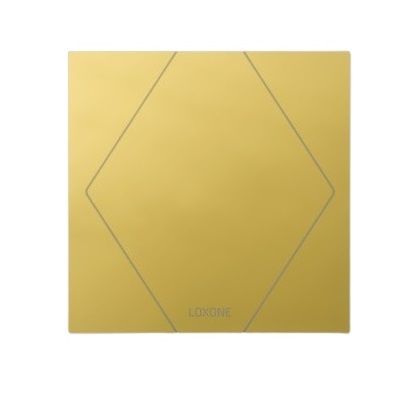

Touch Pure Air Gold LOXONE (100501)
Product Number: 100501
- The Touch Pure switch is an elegant, frameless touch switch with a high-quality 3D printed high-quality glass front. From the switch, you can control lighting, shading, multiroom audio and other central functions - all with just a gentle touch on the capacitive touchpoints.
o Smooth, satin glass finish
o Does not show any fingerprints
o Integrated Backlight (on Tree & Air versions with a fixed power supply)
Thông số kỹ thuật
| Power supply | 6 ~ 30VDC or 2x 1.5V AAA batteries |
| Power consumption | typ. 87mW, max. 119mW |
| Power loss | max. 119mW |
| Battery lifetime | up to 2 years |
| Interfaces | Loxone Air: 868MHz (SRD Band Europe), 4 channels available 915MHz (ISM Band Region 2), 10 channels available max. Power 3.16mW |
| Ambient temperature - line powered | -20 ~ 70°C |
| Ambient temperature - battery powered | -20 ~ 54°C |
| Humidity | max. 95% r.H. (non condensing) |
| Touch points | 5 touch points, capacitive touch detection |
| Click feedback | Yes |
| Temperature detection range | -40 ~ 125°C |
| Humidity detection range | 0 ~ 100% r. H. +/- 2% (non condensing) |
| Orientation light | only possible with power supply |
| Recommended mounting height | 135cm |
| Wire cross-section | 0.25 ~ 0.8mm² / AWG23 ~ 18 |
| Stripping length | 5mm / 0.2” |
| Temperature resistance | -40 ~ 105°C |
| Color | Gold |
| Finish | Matte |
| Weight | 109g |
| Dimensions | 90x90x16mm |
- Bảo hành: 24 tháng.
