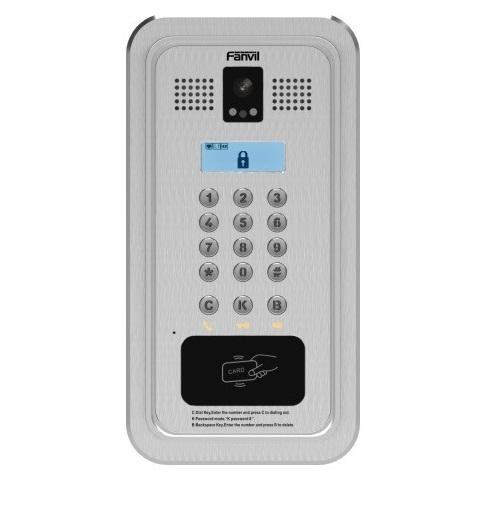

SIP Video Door Phone Fanvil i33VF

SIP Video Door Phone Fanvil i33VF

  • MS 000012047
  • FANVIL
Giá : 12,180,000 vnđ (Đã bao gồm VAT)

SIP Video Door Phone Fanvil i33VF

SIP Video Door Phone Fanvil i33VF

- Hỗ trợ camera với cảm biến hình ảnh 1/2.7-inch color CMOS và độ phân giải 2.0 Megapixels.

- Chuẩn nén video: H.264.

- Kiểm soát truy cập bằng cuộc gọi, code, RFID/IC card và indoor switch.

- All-in-one (Access control, Intercom and Broadcasting).

- Âm thanh HD với loa tích hợp 3W và công nghệ hủy tiếng vọng âm thanh AEC (Acoustic Echo Canceller).

- Hỗ trợ hệ thống bảo trì và quản lý trực tuyến online.

- Compatible with major platforms: Aterisk, Broadsoft, 3CX, Metaswitch, Elastix, etc.

- Tiêu chuẩn chống bụi và nước: IP65.

- Tiêu chuẩn chống va đập: IK10.

Đặc tính kỹ thuật

ModelFANVIL i33VF
Generic- 2 SIP Lines, support SIP 2.0 (RFC3261) and related RFC
- Duplex handsfree
- Default auto answer
- Intercom function
- Industrial Standard Certifications: IP65&IK10, CE/FCC
Access Control Function- Unlock door method: DTMF, password, RFID/IC card, indoor switch, WEB page
- Support 5000 Remote access list
- Support 5000 RFID/IC cards
- Support 200,000 door open records
- Support electric lock internal or external power supply options - Auto multicast function
- Support ONVIF
- Network Time Synchronization
- Action URL/ Active URI
Audio- Wideband ADC/DAC 16KHz Sampling
- Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
- Wideband CODEC: G.722
- Duplex intercom with Acoustic Echo Canceller (AEC) - Hands-free Mode, 96ms tail-length
- Voice Activity Detection (VAD)/ Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive litter Buffer up to 300ms
- DTMF: In-band, Out of Band DTMF (RFC2833)/ SIP INFO
Video- Sensor: 1/2.7-inch color CMOS
- 2 megapixels
- Video code: H.264
- Resolution: Main stream 1280×720@25fps
                    Sub-stream 704×576(D1)@25fps
- Viewing angle: 112° (H), 84° (V)
- Minimum illumination: 0.1Lux, support for infrared illumination
Networking- Support PoE
- Primary and secondary DNS servers are supported
- Support RTSP
- Support SNTP client
- Support VPN L2TP/ openVPN
- Support SRTP
- Support HTTP/ HTTPS web pages
- Support Qos: 802.1p/ q, DSCP
- DHCP/ static/ PPPoE
- Support STUN
Protocols- SIP2.0 over UDP/TCP/TLS l RTP/RTCP/SRTP
- DHCP
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
Deployment & Maintenance- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP
- Web Management Portal l Web-based Packet Dump
- Configuration Import/Export l Firmware Upgrade
- Syslog
Physical Specifications- LCD Pixel: 128x48 dots
- LCD Dimension: 64x30.5x5.2 mm
- Keypad: 15 keys(with backlight),including
                 12 number keys
                  3 function keys (Detail/Password Mode/Backspace)
- 1 RJ45 port, 10/100M adaptive
- 1Wiegandport
-1 audio output interface
- 1 recording output interface
- 2 relays: MAX DC30V/ 2A, AC125V/ 0.5A for door opener
- Active switching output: 12V/ 500mA DC (only 1 relay support)
- 2 indoor switch
- 2 door magnetic detection
- 1 tamper alarm switch
- Temperature controller power:12V/1A(external PSU)
- RFID reader: ID (EM4100,125KHz) &IC (MIFARE ONE,13.56MHz)
- Power: DC12V/1A or PoE
- Housing material: aluminum alloy shell
 rotection level: IP65 and IK10
- Installation: Embedded in the door
- Working temperature: -40 ~ 70 °C
- Storage temperature: -40 ~ 70 °C
- Relative humidity: 10% - 90%
- Equipment Dimension: 295x142x62mm
- Packing Dimension: 370x194x111mm
- Outer CTN Dimension: 413x360x392mm (6 PCS)
- Equipment weight: 2193g

- Bảo hành: 24 tháng.
