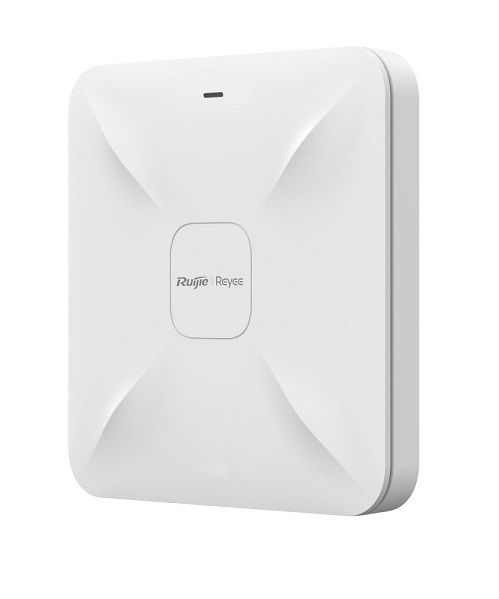

Reyee Wi-Fi 7 Tri-Band BE19000 Ceiling Access Point RUIJIE RG-RAP73HD
- Tri-Band performance, 6G/320MHz brings extre-high wireless rate.
- Better Streaming experience with Wi-Fi 7 exclusive feature MLO.
- Increase the high-density access capacity up to 1500.
- 4K-QAM, deliever data packs better for higher speeds.
- Capable of Enterprise Switch to build PRO Office Network.
Thông số kỹ thuật
| Basic Feature | |
| Wi-Fi Standards | Wi-Fi7(IEEE 802.11be) |
| MIMO | 2.4 GHz,4x4 MIMO 5 GHz,4x4 MIMO 6 GHz,4x4 MIMO |
| Max. Wi-Fi Speed | 2.4 GHz:1376 Mbps 5 GHz:5765 Mbps 6 GHz:11530 Mbps |
| Antenna | 14 (2.4 GHz 4x4, 5 GHz 4x5, 6 GHz 4x5) |
| Antenna Type | Planar inverted-F (PIFA) antennas Antenna gain: 2.4 GHz: 4 dBi; 5 GHz: 6 dBi; 6 GHz: 6 dBi |
| Max. Transmit Power | Frequency bands using and the max EIRP: Note: Country specific restrictions apply European Union & United Kingdom 2400-2483.5 MHz, EIRP≤ 20 dBm 5150-5350 MHz, EIRP≤ 23 dBm 5470-5725 MHz, EIRP≤ 30 dBm 5945-6425 MHz, EIRP≤ 23 dBm United States: 2400-2483.5 MHz, max output power≤30dBm & EIRP ≤ 36 dBm 5150-5250 MHz, max output power≤30dBm & EIRP ≤ 36 dBm 5250-5350 MHz, max output power<24dBm & EIRP ≤ 30 dBm 5470-5725 MHz, max output power<24dBm & EIRP ≤ 30 dBm 5725-5825 MHz, max output power≤30dBm & EIRP ≤ 36 dBm 5925-7125 MHz, EIRP≤ 30 dBm Thailand: 2400-2483.5 MHz, EIRP ≤ 20 dBm 5150-5350 MHz, EIRP ≤ 23 dBm 5470-5725 MHz, EIRP ≤ 30 dBm 5725-5825 MHz, EIRP ≤ 30 dBm 5945-6425 MHz, EIRP≤ 23 dBm |
| Service Port | 1 x 100/1000/2.5G/5G/10GBase-T Ethernet port, PoE-capable 1 x 10/100/1000Base-T Ethernet port 1 x 10GBase-X SFP port (The optical transceiver module needs to be purchased separately.) Note: The access point itself does not transmit optical signals. An optical transceiver module must be installed on the access point to convert optical signals into electrical signals. |
| Max. Clients | 512 (2.4 GHz) + 512 (5 GHz) + 512 (6 GHz) =1500 |
| Recommended Clients | 250 |
| Max. SSIDs | 8 |
| Recommended Wi-Fi Coverage Radius | 2.4 GHz: 40 meters 5 GHz: 70 meters 6 GHz: 70 meters The Wi-Fi coverage is subject to the installation environment of the access point. |
| Max. Wi-Fi Coverage Radius | Max:100 meters |
| Software Feature | |
| WLAN Basic Features | Power Adjustment: Configurable in increments of 1dBm High(100%), Medium(75%), Low(50%), Lower(25%) |
| Layer2 Roaming | |
| Layer3 Roaming | |
| OFDMA Subcarrier | |
| OFDMA, Multiple Access | |
| Target wake time (TWT) | |
| WMM | |
| Radar Signal Detection and Frequency Hopping(DFS) | |
| WLAN Security | Wi-Fi Password: 8 to 16 characters |
| Security Mode: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK; WPA3-SAE, WPA2-PSK/WPA3-SAE | |
| Static Whitelist | |
| Static Blacklist | |
| Enhanced User Experience | Wi-Fi Optimization |
| STA Limit: SSID-based STA limit , radio-based STA limits | |
| Removing Low-RSSI STAs | |
| Adjusting Sending Rate of Beacon and Probe Response | |
| Syslog Recording Why Users Lose Connection | |
| Auto Channel and Power Adjustment on Cloud | |
| RSSI Threshold for STA Access | |
| Load Balancing | |
| Networks | Network Access Mode: PPPoE Client DHCP Client Static IP |
| Avoidance of WAN IP Address Conflicts | |
| VLAN | |
| DHCP Server | |
| System | Cloud Management |
| APP Management | |
| APP Upgrade | |
| APP Restart | |
| Scheduled Restart | |
| Default Access/Password | |
| Local Upgrade | |
| Online Upgrade | |
| Backup | |
| Factory Reset | |
| Language: Chinese English Spanish French Indonesian Thai Russian Turkish German Vietnamese Arabic Note: Spanish, French, Indonesian, Thai, Russian, Turkish, German, Vietnamese, Arabic languages are only supported on R240 and later versions. | |
| System Log | |
| Diagnostics | |
| Network Check | |
| Physical | |
| Status LED | One LED (Blue) |
| Buttons | 1 × Reset button |
| Dimensions (W x D x H) | 258 mm × 258 mm × 59.5mm (10.16 in. x 10.16 in. x 2.20 in., without the mounting bracket) |
| Weight | ≤ 2.0 kg (4.41 lbs., without the mounting bracket) |
| DC Port Dimensions | Outer Diameter: 5.5 mm Inner Diameter: 2.1 mm Length: 10 mm |
| Installation | Ceiling-Mountable |
| Mounting Bracket Dimensions (W × D × H) | 120 mm x 98 mm x 12mm |
| Mounting Hole Pattern | 70mm |
| Mounting Hole Diameter | 6.5 mm |
| Power Supplies | IEEE 802.3at/bt PoE DC 48V/1.25A |
| Max. Power Consumption | 60 W |
| PoE Power Budget | 60 W |
| Environmental | |
| Temperature | Working temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | Working humidity: 5% RH to 95% RH (non-condensing) |
| Storage Humidity | Storage humidity: 5% RH to 95% RH (non-condensing) |
| IP(Ingress Protection) | IP41 |
| Port Surge | Common mode:2 kV differential mode: 1kV |
| MTBF | > 400000H |
- Bảo hành: 3 năm.
