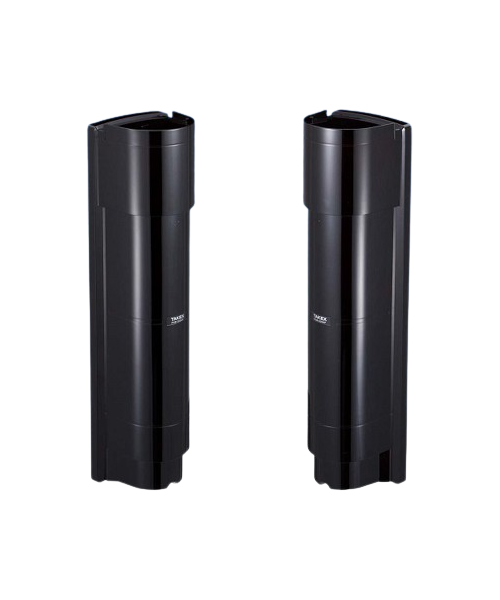

Photoelectric Beam Sensor TAKEX BUS-50HF
- Beam sensor for BUSNET 50m.
Characteristic
- Near infrared beam blocking method: Catch the block of the near infrared beam caused by the intruder's passage. In addition, the double modulation method is also used to take measures against ambient light.
- Equipped with external input terminal: Equipped with an external input terminal, it has become possible to reduce address consumption and prevent false alarms.
- Structure that insects such as ants do not enter: Insect-proofing is strengthened by insect-proof bushings that wrap the wires and special packing. Dust-proof, drip-proof and insect-proof measures equivalent to IP65 are realized.
- Strong against lightning: Lightning surge countermeasures have been strengthened about 10 times compared to the BUS-HF series.
Specification
| Model | BUS-50HF |
| Product name | Infrared sensor |
| Detection method | Near-infrared beam interception method (four-stage beam facing type) [double modulation method] |
| Vigilance distance | Within 50m outdoors |
| Distance margin (maximum reach) | 10 times (500m) |
| Detection response time | 0.05 to 0.7 seconds (variable by volume) |
| Power-supply voltage | 10 to 30 VDC (polarized) |
| Current consumption | 34mA or less (at alert) 60mA or less (at maximum) |
| Transmission method | Bus net method (time division multiplex transmission method) / (with polarity) |
| Transmission signal | Normal: As needed Alarm: Output according to the alarm judgment setting Environmental abnormality: Output when environment deteriorates Tamper abnormality: Output when receiver cover is removed or tamper input is open Low power supply voltage abnormality: Output when power supply voltage drops |
| Contact input | 1 input (a contact / b contact switching type) |
| Tamper input | 1 input (B contact) |
| Alarm indicator (red) | Light-blocking detection: Lights up (light receiver only) Low power supply voltage abnormal: Lights up (light receiver only) |
| Light sensitivity indicator (red) | When the photosensitivity is attenuated: Lights in red (receiver only) |
| Alarm memory indicator (red) | Memory display: Flashes during sensor control and lights up during controller control |
| Inspection indicator light (red) | When an alarm signal responds: Lights up |
| Optical axis adjustment range | Horizontal: ± 90° Vertical: ± 20° |
| Usable ambient temperature | -25℃ ～ + 60℃ (No condensation or freezing) |
| Installation location | Indoor / outdoor (rainproof structure IP65 equivalent) |
| Wiring connection | M3 self-up terminal type |
| Mass | Emitter: Approx. 1,500g Receiver: Approx. 1,550g |
| Appearance | Resin (wine red) |
- Bảo hành: 12 tháng.
