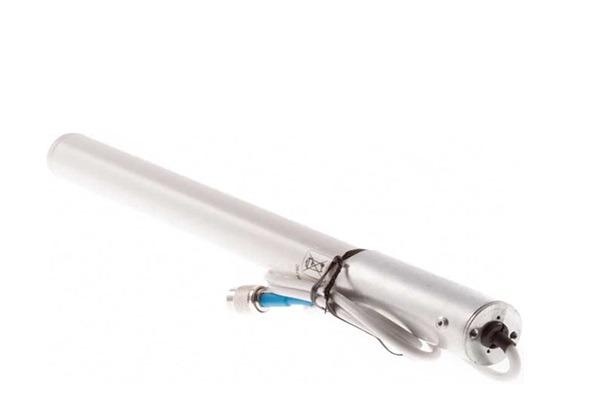

Omnidirectional Antenna Cisco AIR-ANT5160V-R=
- Omnidirectional Antenna Cisco AIR-ANT5160V-R= is a ruggedized high-performance colinear antenna that operates in the 5-GHz frequency range and is designed for use in large rooms or vaulted areas where extended coverage is needed.
- The antenna is designed to be used indoors or outdoors and can be mounted on a mast, I-beam, or suspended ceiling cross member.
Specification
| Antenna type | Omnidirectional colinear array |
| Operating frequency range | 5150–5875 MHz |
| Nominal input impedence | 50 Ohms |
| 2:1 VSWR bandwith | 5150–5850 MHz |
| Peak gain | 6 dBi |
| Polarization | Linear |
| E-plane 3-dB beamwidth | 17° |
| H-plane 3-dB beamwidth | Omnidirectional |
| Cable length and type | 36 in. (91.4 cm) Plenum rated |
| Connector type | RP-TNC Male |
| Length | 11.5 in. (29.2 cm) |
| Diameter | 1 in. (2.5 cm) |
| Weight | 12 oz. (0.34 kg) |
| Operating temperature range | –22°F – 158°F (–30°C – 70°C) |
| Storage temperature range | –40°F – 185°F (–40°C – 85°C) |
| Wind rating | 125 mph (200 kph) |
