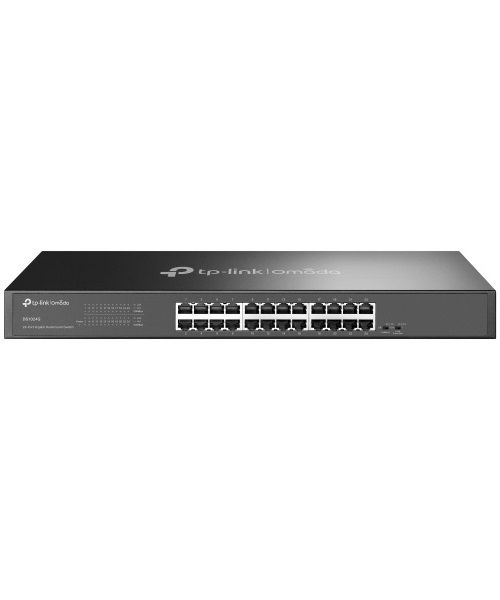

Omada 24-Port Gigabit Unmanaged Rackmount Switch TP-LINK DS1024G
- 24 10/100/1000Mbps RJ45 ports.
- Supports MAC address self-learning and auto MDI/MDIX.
- Standard 19-inch rack-mountable steel case.
- Isolation Mode allows one-click client traffic separation for higher security and performance.
- Monitor and address loop-related issues within your network structure to prevent disruptions caused by looping.
- Plug and Play. No configuration or central management required.
Thông số kỹ thuật
| Standards | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x, IEEE 802.1p |
| Interface | • 24 × 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Max Power Consumption | 13.46W |
| Max Heat Dissipation | 45.76BTU/h |
| Fan Quantity | Fanless |
| Mounting | Rack Mountable |
| Physical Security Lock | Yes |
| Transmission Method | Store-And-Forward |
| Switching Capacity | 48 Gbps |
| MAC Address Table | 8K |
| Packet Forwarding Rate | 35.7 Mpps |
| Jumbo Frame | 10 KB |
| Advanced Features | • Isolation Mode: Ports 1-22 • Loop Prevention: Ports 1-24 • 802.1P/DSCP QoS • Green Ethernet technology |
| Dimensions ( W x D x H ) | 17.3 × 5.5 × 1.7 in (440 × 140 × 44 mm) |
| Certification | FCC, CE, RoHS |
| Package Contents | Switch, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet |
| Environment | • Operating Temperature: 0–40 °C (32–104 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
- Bảo hành: 24 tháng.
