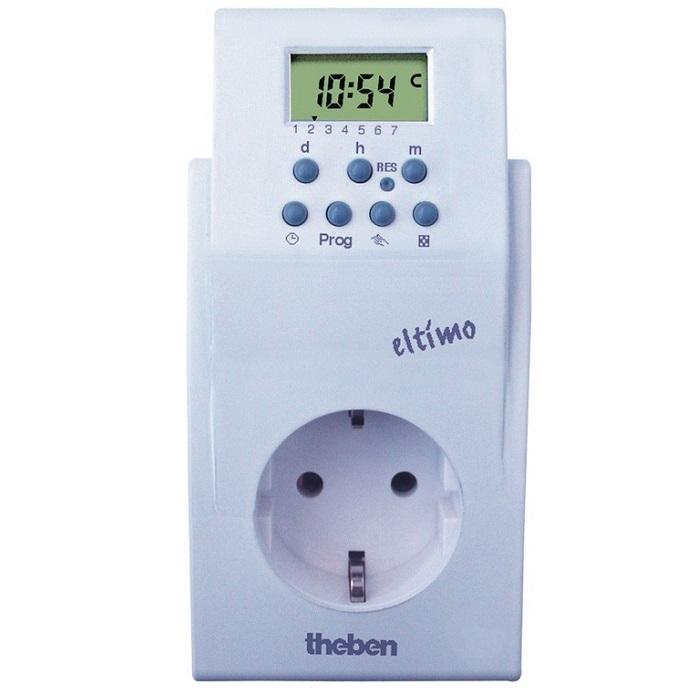

Ổ cắm hẹn giờ kỹ thuật số THEBEN theben-eltimo 020 S
- Digital plug-in timer with weekly program.
- 36 memory locations.
- Use with earthed sockets.
- 1 channel.
- Easy operation via keys for program function and day of the week, hours, minutes.
- ON-OFF switching times.
- Switching preselection.
- Permanent switching ON/OFF.
- Random program.
- Automatic summer/winter time changeover.
- Can be deactivated.
Specifications
| Model | theben-eltimo 020 S |
| Operating voltage | 230 VAC |
| Frequency | 50 Hz |
| Installation type | Plug-in |
| Type of contact | NO contact |
| Opening width | < 3 mm (µ) |
| Program | Weekly program |
| Number of channels | 1 |
| Number of memory locations | 36 |
| Power reserve | 20 days |
| Switching capacity at 250 V AC, cos φ =1 | 16A |
| Switching capacity at 250 V AC, cos φ =0,6 | 2A |
| Incandescent/halogen lamp load 230 V | 1000W |
| Shortest switching times | 1 min |
| Time accuracy at 25°C | ≤ ± 1 s/day (quartz) |
| Time basis | Quartz |
| Stand-by consumption | ~0,8W |
| Type of connection | Plug-in |
| Type of protection | IP20 |
| Protection class | II for housing, I for plug system as per EN 62 730-1 |
| Ambient temperature | -10°C … +40°C |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
