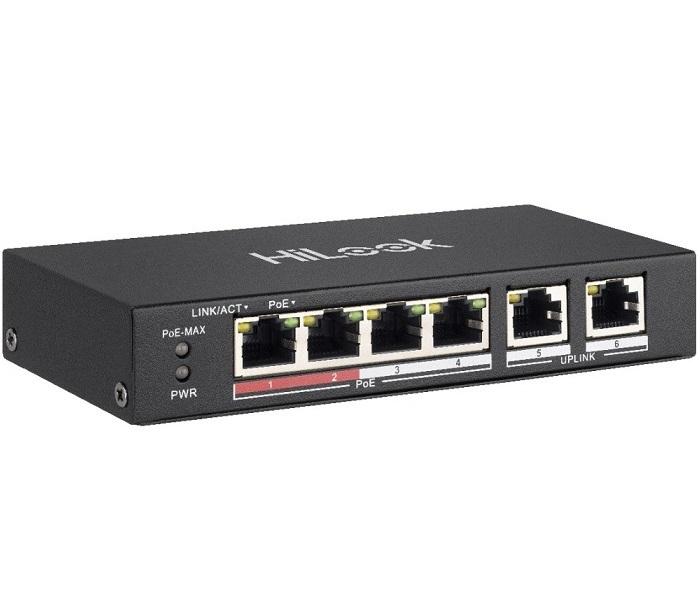

4-Port 100M Unmanaged PoE Switch HILOOK NS-0106P-35
- 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
- IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
- IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
- 6 KV surge protection for PoE ports.
- Up to 250 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design
Specifications
| Model | NS-0106P-35 |
| Network parameters | |
| Port number | 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports |
| Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
| Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Forwarding mode | Store-and-forward switching |
| Working mode | Standard mode (default), Extend mode |
| High priority ports | Ports 1 and 2 |
| Ports for long-distancectransmission | Ports 1 to 4 |
| MAC address table | 4K |
| Switching capacity | 1.6 Gbps |
| Packet forwarding rate | 0.8928 Mpps |
| Internal cache | 768 Kbits |
| PoE power supply | |
| PoE standard | Ports 1 to 4: IEEE 802.3af, IEEE 802.3at |
| PoE power pin | Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously |
| PoE port | Ports 1 to 4 |
| Max. port power | Ports 1 to 4: 30 W |
| PoE power budget | 35 W |
| Dialing function | |
| Long range | Ports 1 to 4: up to 250 m |
| General | |
| Shell | Metal material, fan-free design |
| Net weight | 0.265 kg |
| Dimension (L × H × D) | 145 × 68.45 × 25.6 mm |
| Operating temperature | -10°C to 40°C |
| Storage temperature | -40°C to 85°C |
| Operating humidity | 5% to 95% (no condensation) |
| Storage humidity | 5% to 95% (no condensation) |
| Power supply | 48 VDC, 0.8 A |
| Power consumption in idle | <5W |
| Max. power consumption | 38W |
| Power source | 38W |
- Bảo hành: 24 tháng.
