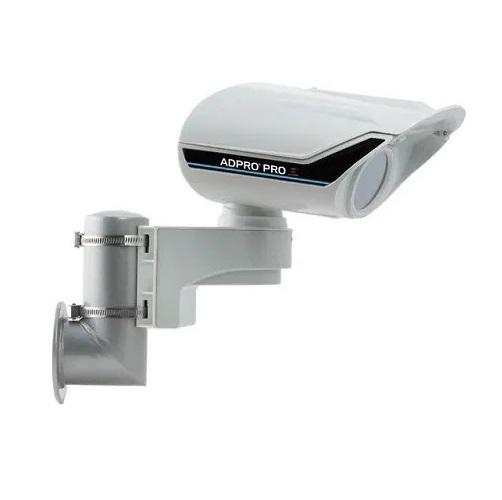

Máy dò hồng ngoại PIR HONEYWELL ADPRO PRO E-100 (CH10033001)

Máy dò hồng ngoại PIR HONEYWELL ADPRO PRO E-100 (CH10033001)

  • MS 000010949
  • HONEYWELL
Giá : Liên hệ

Máy dò hồng ngoại PIR HONEYWELL ADPRO PRO E-100 (CH10033001)

Máy dò hồng ngoại PIR HONEYWELL ADPRO PRO E-100 (CH10033001)

- Detection principle: Curtain, long-range.

- Nominal range (L x W): 120 x 2.9 m.

- Angle of beam: 1.3°.

- Alarm indicator: Internal LED (during commissioning).

- Data-Interface: RS-485, 9600 baud/s // on-board.

- Supply voltage: 10.5 - 30 VDC, 24 VAC ±15% auto-sensing.

- IP-Rate: IP66.

- Dimensions (L x W x H): 358 x 188 x 290 mm.

- Weight: Approx. 1.65 kg.

Thông số kỹ thuật

ModelPRO E-100
Detection principleCurtain, long-range
Nominal range (L x W), width at nominal range120 m x 2.9 m
Angle of beam (angle of aperture, AA)1.3°
360PROtectTM - Near Surrounding Area Surveillance-1 m up to +8 m (-3 ft up to +26 ft)
Spectral response8-14μ, double filtered
Filter (Front Window)Standard versions: HDPE-Filter, IR transmissive / H-Versions: Silicon Wafer
Pyroelectric Sensor (differential)triple-channel
Detection speed range0.2 - 5 m/s (0.7 - 16 ft/s)
Alarm outputs (free programmable)3
Alarm settings (free programmable)Alarm in Main Zone; Alarm Creep Zone (360PROtect); Pulse Count; Alarm Tamper Bracket Switch, Alarm Cover Switch, Alarm Detector Alignment, Alarm Antimasking, Alarm Fault (Power Supply, Temperature, Heating)
Output load (max.)3x (Standard) / 5x (H-version) Solid State Relais 75 mA max. @ 60 VDC
Alarm indicatorInternal LED (during commissioning)
Data-InterfaceRS-485, 9600 baud/s // on-board
Cable feed (diameter)Rubber seal for 4x 5-8mm cables and 4x 1-2mm wires
Cable termination (screw terminals)Screw terminals 0.34 mm2 to 1,5 mm² (AWG 28 -16)
Supply voltage10.5 - 30 VDC, 24 VAC ±15% auto-sensing
Supply currentapprox. 18 mA @ 12 VDC, 12 mA @ 24 VDC, 30mA @ 24 VAC (@ +25°C), excluding heater
Heater powerapprox. 0.5 W / ~41 mA @ 12 VDC and -40°C
Operating temperature and temperature compensationStandard version with HDPE-filter (no heater): -20 ºC to +60 ºC (-4 ºF to +140 ºF)
H-version with Silicon Wafer and heater: -40 °C to +60 °C (-40 ºF to +140 ºF)
Full compensation over entire operating temperature range
Housing materialLuran® S (ASA)
IP-Rate IP66
MountingWall and pole mounting — cable managed bracket (CMB) included
Weight (incl. cable managed bracket)approx. 1.65 kg
Dimensions (L x W x H)358 mm x 188 mm x 290 mm

- Bảo hành: 12 tháng.
