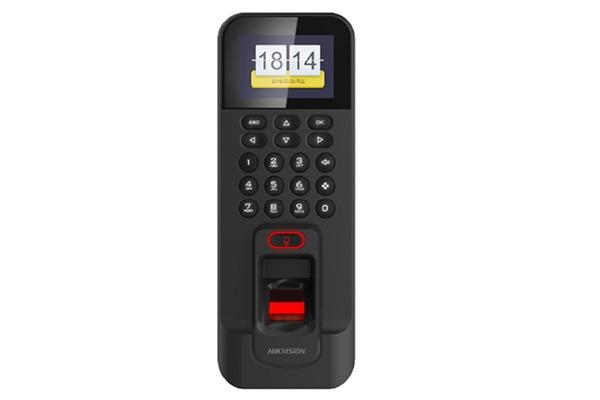

Máy chấm công vân tay tích hợp đọc thẻ EM HIKVISION DS-K1T804EF
- Màn hình LCD 2.4 inch.
- Lưu trữ 3000 user, 3000 vân tay, 3000 thẻ, 10000 sự kiện.
- Loại thẻ: EM.
- Khoảng cách đọc thẻ: 0~5cm.
- Giao tiếp TCP/IP, USB2.0, Wiegand, RS485
- Tiêu chuẩn chống thấm nước và bụi: IP42.
- Nguồn điện: 12VDC.
- Kích thước: 205×76.5×37mm.
Đặc tính kỹ thuật
| Model | DS-K1T804EF |
| Operating System | Linux |
| Storage | Up to 3000 Valid Cards; |
| Up to 100,000 Event Records; | |
| Up to 150,000 Attendance Records | |
| Fingerprint Capacity | Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person |
| Fingerprint Comparing Mode | 1:1 and 1:N, N=3000 |
| Card ReadingResponse Duration | < 1 s |
| FingerprintAuthentication Duration | < 1 s |
| FAR (False Accept Rate) | ≤ 0.001 % |
| FRR (False Rejection Rate) | ≤ 0.01 % |
| Fingerprint Recognizer | Optical Fingerprint Recognizer Module |
| External Card Reader | Standard Wiegand26/34 |
| Card Reading Mode | Supports EM Card, |
| Including Cards with | |
| Special Shapes; Supports | |
| Reading Card in Metal | |
| Environment | |
| Card Reading Distance | 0 to 5cm |
| Keyboard | Keyboard (Back Light) |
| Reset Key | × 1 |
| Communication | TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output |
| Interface | (W26/W34) and Input (Wiegand 26/34) |
| Wi-Fi | Support |
| Wiegand Interface | Output: Wiegand 26/34; |
| Input: Wiegand 26/34 | |
| Transmission Rate | TCP/IP: 10/100Mbps, Self-adaptive; |
| RS485: 19200 bps-N-8-1 | |
| Input Interface | Exit Button × 1, Door Sensor × 1 and Alarm Input × 1 |
| Output Interface | Relay (Lock Output) × 1, and Alarm Output × 1 |
| USB | USB 2.0; Type A |
| LCD Screen | 2.4-inch (320 × 240 LCD-TFT Display Screen) |
| Audio | 1 Buzzer and 1 Loudspeaker |
| LED Indicator | Power/Status (Red/Green) |
| Power Supply | 12VDC/2 A |
| Working Temperature | -10 °C to 55 °C (14 ° F to 131 ° F) |
- Bảo hành: 24 tháng.
