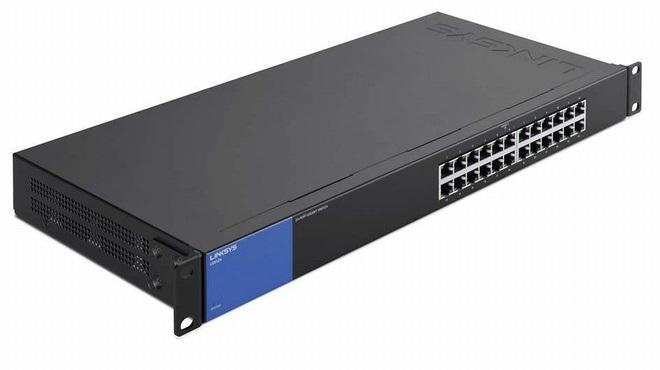

24-Port Business Desktop Gigabit Switch LINKSYS LGS124

24-Port Business Desktop Gigabit Switch LINKSYS LGS124

  • MS 000009027
  • LINKSYS
Giá : 3,000,000 vnđ (Đã bao gồm VAT)

24-Port Business Desktop Gigabit Switch LINKSYS LGS124

24-Port Business Desktop Gigabit Switch LINKSYS LGS124

-      Upgrade the data paths of your local wired network to information superhighways with 24-port desktop Gigabit switches.

-      24 Port 10/100/1000 Mbps with MDI and MDI crossover (MDI-X); auto negotiated port.

-      Bandwidth: 48 Gbps (non-blocking).

-      Performance: Full line rate and forwarding rate of 64B frame at: 1.488Mpps for 1000M port; 0.1488Mpps for 100M port; 0.01488Mpps for 10M port.
Wired connection speed up to 1000 Mbps

-      24 Gigabit Ethernet auto-sensing ports

-      Easy plug & play connection

-      QoS

-      Meets EEE (Energy Efficient Ethernet) 802.3az standard

GIGABIT PERFORMANCE

Minimize transfer times and stream high-bandwidth files to connected devices without interference.

PLUG-AND-PLAY CONVENIENCE

Instantly extend your office network with a quick and easy installation.

QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.

AUTO-SENSING PORTS

Automatically optimize speed for each connected device.

POWER-SAVING FEATURES

The auto power-down feature disables unused ports, smart power is ideal for short cable runs, and the port status switch controls LED lights.

Technical specifications

-      Network Standards:

o   IEEE 802.3

o   IEEE 802.3u

o   IEEE 802.3x

o   IEEE 802.3ab

o   IEEE 802.3az

-      Ports:
24 Gigabit Ethernet (10/100/1000) Ports

-      LEDs:
Link, speed, and activity indicators

-      Performance:

o   Full line rate and forwarding rate of 64B frame at:

o   1.488Mpps for 1000M port

o   0.1488Mpps for 100M port

o   0.01488Mpps for 10M port

-      MAC Address Table Size:
8,000 entries

-      Bandwidth:
48 Gbps (non-blocking)

-      Fans:
None

-      Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables

-      Dimensions (LxWxH):
440 x 200 x 44 mm (171.6 x 78 x 17.16 in.)

-      Weight:
2.374 kg (5.17 lbs)

-      Power:
110–240 VAC, 50/60 Hz

-      Power Consumption:
4.39 W / 14.16 W

-      Power Saving:
Cable connected detection, sleep mode

-      Power Supply:
Internal

-      Operating Temperature:
0–50°C (32–122°F)

-      Storage Temperature:
-20–70°C (-4–158°F)

-      Operating Humidity:
10–90% (non-condensing)

-      Storage Humidity:
10–90% (non-condensing)

-      Mounting:
Rack

-      Quality Of Service:
802.1p and DSCP

-      Regulatory Compliance:
FCC Class A, CE

-      Bảo hành chính hãng: 12 tháng.
