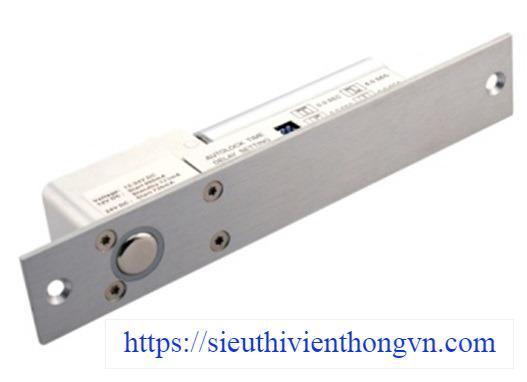

Khóa chốt điện từ HIKVISION DS-K4T100
-Khóa chốt điện từ bằng thép không rỉ.
-Chịu lực lên đến 800kg.
-Photoelectric control technique to avoid mechanical failure.
-Ultra-cold design and ultralow-consumption to make the electric bolt safer and more durable.
-500 thousand timesof locking operation.
-Equipped with internal voltage dependent resistor (MOV).
-Equipped with smart one-chip.
-The main body and bolt of the electric strike is made up of alloy and stainless steel respectively.
-The delay duration can be set: 0/3/6/9s.
-Nguồn điện cung cấp: 12VDC.
-Trọng lượng: 0.7kg.
Đặc tính kỹ thuật
| Model | DS-K4T100 |
| Dimension of Plate (LxWxH) | 205 x 35 x 40mm |
| Dimension of Strike (LxWxH) | 90 x 25 x 2mm |
| Dimension of Bolt | 16mm x 16mm |
| Bolt Performance | Polished and Brushed Stainless Steel, Support Thrust of 800kg |
| Input Voltage | 12VDC+10% |
| Working Current | 900mA (Startup Current) 100mA (Standby) |
| Secure | Power Off for Unlocking |
| Signal Output | Signal Output NC, COM Contact of Door-status |
| Suitable Doors | Wooden Door, Glass Door, Metal Door, Fireproof Door |
| Delay Duration | 0/3/6/9s Optional |
| Magnetic Induction Distance | 8mm (0.31 inch) |
| Working Temperature | -10°C to +55°C (14°F to 131°F) |
| Lifetime | 500 Thousand Times of Locking Operation |
| Weight | 0.7kg |
-Bảo hành: 24 tháng.
