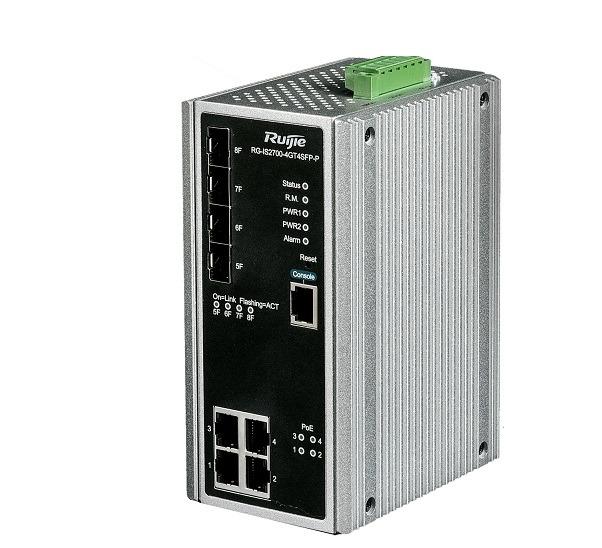

Industrial PoE Switch Ruijie RG-IS2700-4GT4SFP-P

Industrial PoE Switch Ruijie RG-IS2700-4GT4SFP-P

  • MS 000008833
  • RUIJIE
Giá : Liên hệ

Industrial PoE Switch Ruijie RG-IS2700-4GT4SFP-P

Industrial PoE Switch Ruijie RG-IS2700-4GT4SFP-P

- 4-port 10/100/1000BASE-T, 4-port 100/1000BASE-X SFP (non-combo), redundant DC power input.

- Port1-4 for PoE/PoE+, PoE power budget 120 watts.

- Tốc độ chuyển mạch: 16Gbps.

- Tốc độ chuyển gói tin: 12Mpps.

- Nguồn điện: AC 100~240V, 50/60Hz.

- Kích thước (W x D x H): 74 x 152 x 105 mm.

- Nhiệt độ hoạt động: 0°C~50°C.

Đặc tính kỹ thuật

Model RG-IS2700-4GT4SFP-P
Fixed Ports4 100/1000BASE-X SFP ports
4 10/100/1000BASE-T ports support PoE/PoE+
Management Port1 console port
Switching Capacity16Gbps
Forwarding Rate12Mpps
MAC Address8K
VLAN Group256 (VLAN ID 1 ~ 4094)
VLAN ArrangePort based VLAN, Q-in-Q (VLAN Stacking), GVRP
PoE Power Budget120 Watts
PoE Standard802.3 af/at
Operating Temperature-40 to 75°C
Operating Humidity5% to 95%RH
Protection RatingIP40
MTBF>42 years
Electromagnetic InterferenceESD (IEC 61000-4-2)                   Level 3
RS (IEC 61000-4-3)                     Level 3
EFT (IEC 61000-4-4)                    Level 3
CS (IEC 61000-4-6)                     Level 3
PFMF (IEC 61000-4-8)             Level 3
Surge (IEC 61000-4-5)             Level 3
L2 ProtocolsJumbo Frame, Port based VLAN, Q-in-Q (VLAN Stacking), GVRP; Port Mirroring; IGMP Snooping v1/v2/v3, MLD Snooping, IGMP Immediate leave; Storm Control; IEEE 802.1D-STP, IEEE 802.1s-MSTP, IEEE 802.1w-RSTP, ERPS, R-Ring
QoSWRR (Weighted Round Robin), SP (Strict Scheduling Priority) Hybrid Priority; IEEE 802.1p Based CoS, IP TOS, DSCP based CoS; Ingress Rate limit, Egress Rate limit; IEEE 802.3ad Dynamic Port Trunking, Static Port Trunking
SecurityPort Security: Static, Dynamic; Authentication: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption)
ManagementSNMP v1/v2c/v3, HTTP, HTTPS, Telnet, RMON, SNMP, SSH, SNTP client, DHCP Client, DHCP Server, Option 66/67/82
Dimensions (W×H×D) 74x152x105 mm
Installation ModeDIN rail-mounted
Power Supply48 VDC (46 to 57 VDC), 53 -57 VDC is recommended for 802.3at, redundant dual power input
System Power Consumption14 Watts
Heat DissipationFanless design with high-efficiency heat sink
EmissionsEN 300 386, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, FCC Class A

- Bảo hành: 3 năm.
