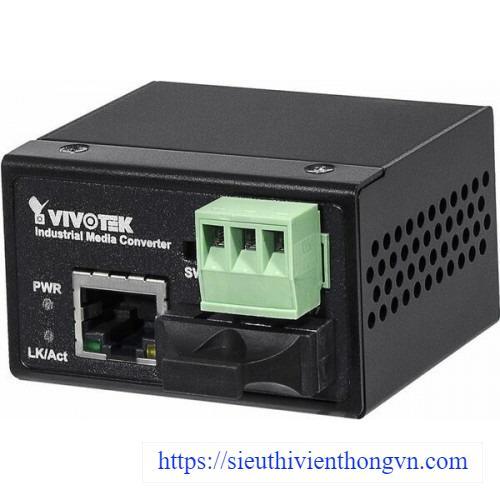

Industrial Media Converter Vivotek AW-IHS-0200
The AW-IHS-0200 is a rugged media converter designed for critical and space-limited outdoor applications. Designed for IP surveillance, traffic monitoring, and security applications in critical environments, the converter features a wide range of VAC and VDC input range, and an operating temperature ranging from -40°C to 75°C.
Specifications
| Model | AW-IHS-0200 |
| IP Camera Compatibility | |
| Video Resolution | Megapixel/D1/VGA |
| Video Compression | MJPEG/MPEG-4/H.264/H.265 |
| Compatible Camera List | VIVOTEK Network Cameras |
| Ethernet | |
| Fast Ethernet (RJ45) | 1 |
| Fast Ethernet (Fiber) | SC Multi-mode 2 km, 1310nm |
| MAC Address | 1K |
| Buffer Memory | 128KB |
| Transmission Method | Store and Forward |
| Auto-MDI/MDI-X, Auto-Negotiation | Supported |
| Transmission Media | |
| 10Base T | Cat. 3, 4, 5 UTP/STP |
| 100Base TX | Cat. 5, 5e UTP/STP |
| General | |
| LED Indicators | Power, LAN, Speed |
| Power Input | 18V-36VAC or 12V-60VDC Power Input |
| Power Consumption | 2W |
| Housing | IP40 Design, High Graded Aluminum |
| Operating Temperature | -40°C ~ 75°C |
| Dimensions | 59 (L) x 49 (W) x 36 (H) mm |
| Weight | 0.08kg |
- Bảo hành: 24 tháng.
