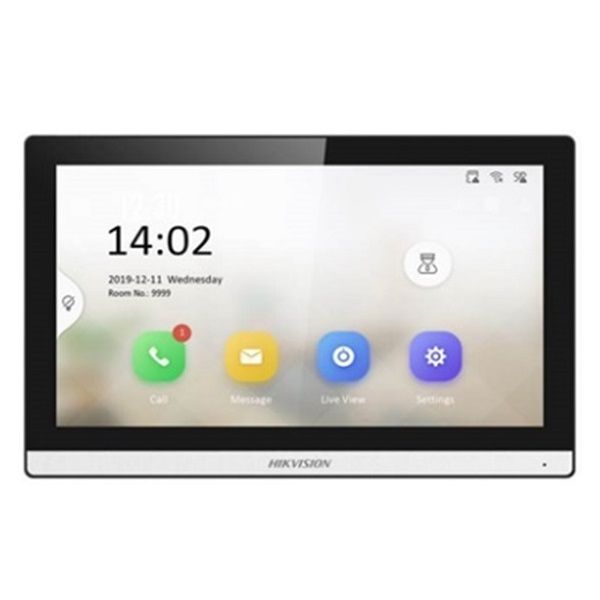

Màn hình màu chuông cửa IP HIKVISION DS-KH6350-WTE1
- Màn hình chuông cửa đặt bên trong nhà.
- Màn hình cảm ứng điện dung LCD 7 inch gắn trong nhà, độ phân giải 1024x600.
- Hệ điều hành: Linux.
- Hỗ trợ gửi tin nhắn, gọi màn hình khác.
- Hỗ trợ mở cửa qua app và màn hình.
- Hỗ trợ 08 cổng báo động, 02 ngõ ra điều khiển, 01 cổng RS485, 01 cổng LAN 10/100M.
- Tích hợp sẵn micro thu âm và loa.
- Hỗ trợ cấp nguồn qua Ethernet (PoE).
- Kết nối với hệ thống, phần mềm quản lý qua TCP/IP hoặc Wifi.
Đặc tính kỹ thuật
| System parameters | |
| Operation system | Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embeded high performance processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711U, G.711A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Message capacity | TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
| Notice capacity | 200 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
| Network parameters | |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Device interfaces | |
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 RS-485 (Half duplex) |
| TF card | Support TF card, up to 128 G |
| Alarm output | 2 |
| Lock control | 2 relays, Max. 30 VDC 0.3 A |
| Genera | |
| Installation | Wall mounting, table mounting |
| Weight | 355g |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 175 mm × 113.5 mm × 21 mm |
| Application environment | Indoor |
| Power consumption | ≤ 5 W |
| Language | English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian |
- Bảo hành: 24 tháng.
