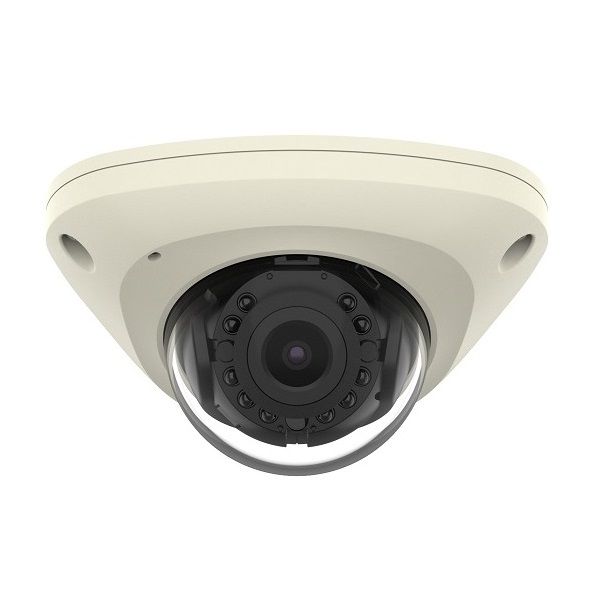

Camera IP Flat hồng ngoại 2.0 Megapixel Hanwha Vision QNV-6024RM
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 2.0 Megapixel.
- Độ nhạy sáng: 0.03Lux@F2.0 (Color), 0Lux (B/W: IR LED On).
- Chuẩn nén hình ảnh: H.265, H.264.
- Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ tối đa 128GB.
- Ống kính: 3.6mm (fixed focal).
- Góc quan sát: H: 94.8˚ / V: 49.3˚ / D: 114.3˚.
- Tầm quan sát hồng ngoại: 15 mét.
- Hỗ trợ nhiều luồng (Multiple streaming).
- Chức năng quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR (120dB).
- Tiêu chuẩn chống thấm nước: IP66 (camera quan sát thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Hỗ trợ M12, LDC, Hallaway view.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE.
- Màu sắc: Ivory.
- Chất liệu: Aluminum.
- Kích thước: 98.9 x 52.0 x 100.0mm.
- Trọng lượng: 295g.
Đặc tính kỹ thuật
| Model | QNV-6024RM |
| Video | |
| Imaging Device | 1/2.8 inch 2MP CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) |
| MJPEG: Max. 15fps/12fps(60Hz/50Hz) | |
| Min. Illumination | Color: 0.03Lux(F2.0, 1/30sec) |
| BW: 0Lux(IR LED on) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480 (N), 720x576 (P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 94.8˚ / V: 49.3˚ / D: 114.3˚ |
| Focus Control | Fixed |
| Min. Object Distance | 0.5m |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | ±5° / 0°~67° / ±90° |
| Operational | |
| IR Viewable Length | 15m |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Audio In | Selectable (mic in/line in) |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | M12 (10/100BASE-T) |
| Video Compression Format | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable |
| G.726(ADPCM) 8KHz, G.711 8KHz | |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Smart Codec | WiseStream II |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| General | |
| Color / Material | Ivory / Aluminum |
| Input Voltage / Current | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 6.7W, typical 5W |
| Certification | IP66, IK10 |
| Dimension | 98.9 x 52.0 x 100.0mm |
| Weight | 295g |
- Bảo hành: 24 tháng.
