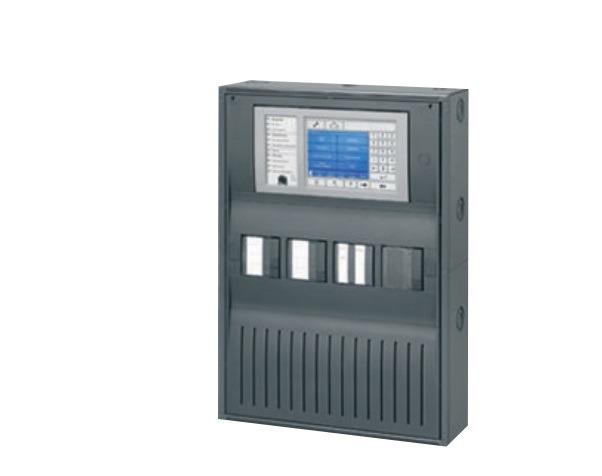

Fire Panel BOSCH FPA-1200-C-APR
- FPA-1200-C-APR Fire panel, Asia-Pacific lettering and user documentation in English Order number FPA-1200-C-APR.
- Easy upgrade to 2 loops by second LSN 0300 A module.
- Connection of up to 254 elements (127 per loop).
- Remote operation by up to 3 Remote Keypads (via CAN or Ethernet).
- Auto-detection of modules and Plug-in of modules during operation.
- Serial interface to Bosch Voice Evacuation System (EVAC).
Đặc tính kỹ thuật
| Model | FPA-1200-C-APR |
| Electrical | |
| Operating voltage | 20 V DC to 30 V DC |
| Mechanics | |
| Display element | 14.5 cm (5.7-inch) multi-color TFT display |
| Operating element | Touch screen |
| Interfaces | - Ethernet - USB - RS232 |
| Signal inputs | 2 |
| Dimensions (H x W x D) | 638 mm x 440 mm x 149 mm (25.1 x 17.2 x 5.87 inch) |
| Weight | Approx. 20 kg (44 lb) |
| Environmental conditions | |
| Permissible operating temperature | -5 °C to 50 °C |
| Permissible storage temperature | -20 °C to 60 °C |
| Protection class as per IEC 60529 | IP 30 |
- Bảo hành: 12 tháng.
