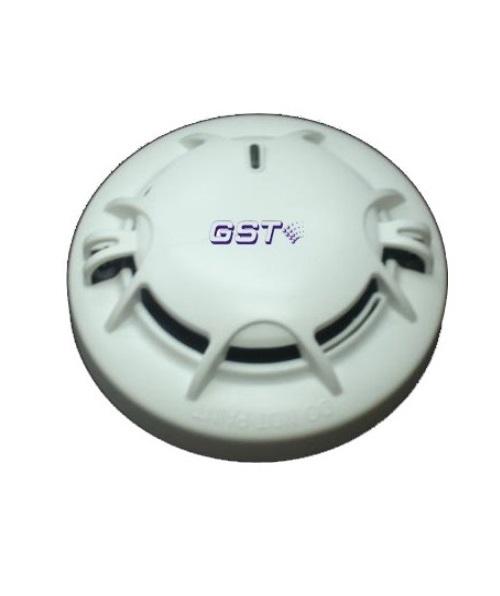

Đầu dò báo khói nhiệt kết hợp GST DC-9101E
- Strong environmental adaptability due to drift compensation.
- Reed switch testing.
- Removable innovative sensing chamber, easy for maintenance.
- Fire LED allow 360° viewing.
- Remote indicator output available.
- 2 levels sensitivities programmable; fix temperature or rate of rise programmable.
- 2 levels smoke sensitivities programmable, level 1 complies with EN 54-7. Heat part complies with EN 54-5.
Thông số kỹ thuật
| Model | DC-9101E |
| Operating Voltage | 24VDC(16VDC~28VDC) |
| Standby Current | ≤60μA |
| Alarm Current | ≤55mA |
| Fire LED | Red, flash in polling and illuminate in alarming |
| Remote Indication Output | Polarized output. Directly connect to remote indicator (built in 10k resistor in series, output current is 2.0mA); Flash in alarming and do not illuminate in normal |
| Class and Setup | Classes A1R, A2S, BS programmable |
| Maximum Ripple Voltage | 2V ( peak-to-peak) |
| Alarm Reset | Instant power down (2s Min, 1.0 VDC Max) |
| Wiring | Two-wire, polarity sensitive. When the polarity is reversed, the detector can give alarm but the remote indicator doesn't work normally |
| Setting of sensitivity and range | The sensitivity can be set by programmer with two level: Level 1 (default), level 2 |
| Detector Class | A2R |
| Action Temperature | 62℃ |
| Environment Temperature | -10℃~+50℃ |
| Relative Humidity | ≤95%, non condensing |
| Material of Enclosure | ABS |
| Ingress Protection Rating | IP2X |
| Dimension | Diameter: 100mm Height: 54.5mm (With base) |
| Mouting Hole Spacing | 45mm~75mm |
| Weight | About 110g |
- Bảo hành: 12 tháng.
