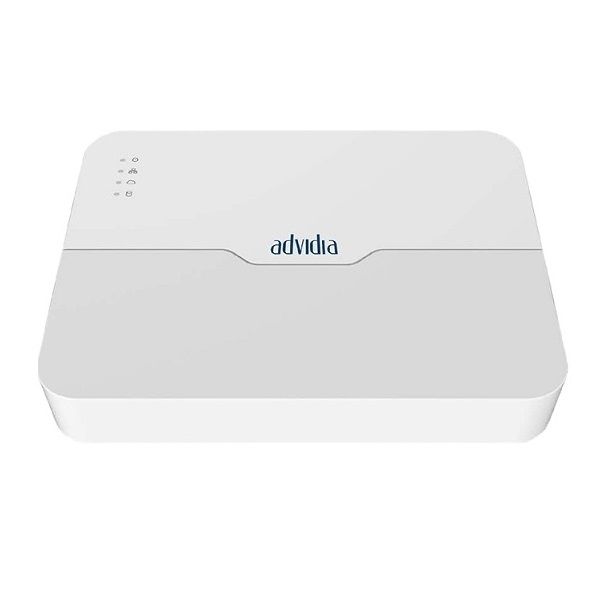

Đầu ghi hình camera IP 16 kênh ADVIDIA M-NVR-16ch-8PoE
- ADVIDIA M-NVR-16ch-8PoE là đầu ghi hình hỗ trợ 16 kênh IP đầu vào, với độ phân giải lên đến 4K.
- Chuẩn nén hình ảnh: H.265/H.264.
- Tương thích với tín hiệu ngõ ra: HDMI/VGA.
- Hỗ trợ 1 ổ cứng SATA HDD với dung lượng lên đến 6TB.
- Hỗ trợ các giao thức: HTTP, RTSP, SMTP, DNS, DDNS, FTP, P2P, UPnP, NTP, DHCP, PPPoE.
- Hỗ trợ 1 ngõ ra Audio, RCA.
- Hỗ trợ PoE.
- Kích thước (W × D × H): 270 x 205 x 46 mm.
- Trọng lượng: ≤0.8kg.
- Đặc tính kỹ thuật
| Video/Audio Input | |
| IP Video Input | 16-ch |
| Supported camera | Advidia M-series |
| Network | |
| Incoming Bandwidth | 64Mbps |
| Outgoing Bandwidth | 48Mbps |
| Remote Users | 128 |
| Protocols | HTTP, RTSP, SMTP, DNS, DDNS, FTP, P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| HDMI/VGA Output | HDMI: 4K(3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Recording Mode | Normal, Event, Manual |
| Audio Output | 1-ch, RCA |
| Camera Control | Pan/Tilt, Zoom, Focus, Iris, Preset Position, Preset Patrol, Recorded Patrol, Auto Guard |
| Synchronous Playback | 16-ch |
| Multiscreen Mode | Normal Mode: 4/6/8/9/16 Corridor Mode: 3/4/5/7/9/10/12/16 Web Client: 4/6/8/9 |
| Decoding | |
| Decoding format | H.265/H.264 |
| Live view/Playback | 4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 1 x 4K@30fps, 4 x 5MP@25fps, 4 x 4MP@25fps, 4 x 3MP@25fps, 4 x 1080p@30fps, 8 x 720p@30fps, 16 x D1@25fps |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 6TB |
| Video Analytics | |
| VCA Detection | Motion detection, Tampering detection, Intrusion detection, Cross line detection, Human body detection, Audio detection, Face detection |
| VCA Search | Behavior search (Intrusion, Cross line), Face search |
| External Interface | |
| Network Interface | 1x 10BASE-T / 100BASE-TX (RJ45) |
| USB Interface | Rear panel: 2 x USB2.0 |
| PoE | |
| Interface | 8x 10BASE-T / 100BASE-TX (RJ45) |
| Max Power | Max 30W for single port Max 75W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
| General | |
| Safety | CE, IEC62368-1 |
| EMC | EN55032 ClassB, EN55024 |
| Power Supply | 52V DC Power Consumption: ≤9 W (without HDD) |
| Working Environment | -10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) | 270mm × 205mm × 46mm |
| Weight (without HDD) | ≤0.8kg |
- Thương hiệu của Panasonic.
- Sản xuất tại Trung Quốc.
- Bảo hành: 01 năm.
