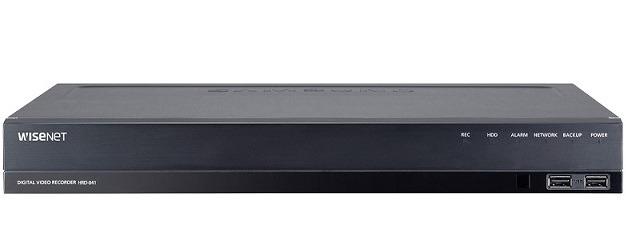

Đầu ghi hình AHD 8 kênh Hanwha Techwin WISENET HRD-841/VAP
- Kết nối camera AHD, TVI, CVI, Analog, PAL, NTSC.
- Hỗ trợ 2 ổ cứng SATA x 6TB, 1 cổng eSATA.
- Chuẩn nén hình ảnh: H.264, MPEG-4, MJPEG.
- Cổng Audio: 4 vào/1 ra.
- Tốc độ ghi hình/NTSC lên tới 240/120 fps@1920 x 1080.
- Tốc độ ghi hình/PAL lên tới 200/100 fps@1920 x 1080.
- Truyền dữ liệu: 4MP, 1080p, 720p, WD1, 4CIF, CIF.
- Băng thông tối đa 64Mbps.
- HDMI, VGA, RS485, Ethernet, USB, Audio, BNC.
- Cáp đồng trục Pelco-C (Coaxitron) AHD: ACP (AHD Coax Protocol).
- WebViewer, iPolismobile Viewer, SSM (CMS), Smartviewer.
Đặc tính kỹ thuật
| Model | HRD-841/VAP |
| Display | |
| Analog Camera Inputs | 8CH (1Vp-p 75ohm, BNC) |
| Signal Type | AHD (4MP, 1080p, 720p) HDTVI (1080p) HDCVI (1080p) CVBS (NTSC/PAL) |
| Local Display | HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x720 VGA: 1920x1080, 1280x1024, 1280x720 |
| Resolution | 4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(30/25fps), 720H(30/25fps) 960x576(30/25fps) per CH |
| Performance | |
| Compression | H.264 |
| Recording Mode | Manual, Schedule (Continuous/Event), Event (Pre/Post), Time lapse (1~30 fps(N), 1~25fps(P)) |
| Mode | Manual, Schedule (Continuous / Event), Event (Pre / Post) |
| Event Trigger | Video Loss, Motion(Level 1~10), Alarm Input(16), Tampering(Level Low,Medium, High) |
| Event Action | E-mail, Alarm out, Buzzer |
| Search & Playback | |
| Simultaneous playback | 8CH (Local Monitor) |
| User | Max. 4 Users (Local 1, Remote 3) |
| Storage | |
| Supported HDD | Up to 6TB |
| HDD Slot | SATA 2ea (Max 12TB) |
| Network | |
| Protocol | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP |
| DDNS | Wisenet DDNS |
| Transmission Bandwidth | Max. 64Mbps |
| Max. Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile |
| Interface | |
| HDMI | 1 |
| VGA | 1 |
| BNC | 8CH In / 1CH Out(Spot Output) |
| e-SATA | 1 |
| Audio | Out (1EA, RCA, Line) |
| Alarm | 8in/ 4out |
| USB | 3EA(Front 2, Rear 1) |
| Serial | RS-485 |
| Power inlet | 1EA DC Input Jack |
| General | |
| Input Voltage/ Current | DC12V Adaptor (100~250VAC ±10%, 50/60Hz) |
| Power Consumption | Max. 23W |
| Operating Temperature | 0°C~+40°C |
| Dimensions (WxHxD) | 370 x 44 x 320 mm |
| Weight | 3.4Kg |
- Hãng sản xuất: Hanwha Techwin Hàn Quốc.
- Sản xuất tại Việt Nam.
- Bảo hành: 24 tháng.
