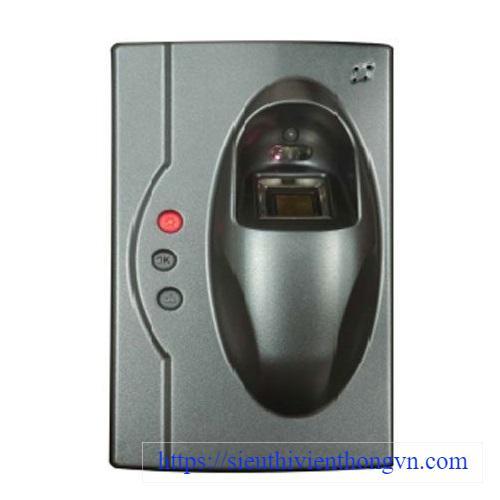

Đầu đọc vân tay SYRIS SYRDF6
Feature:
• Built-in Anti-Tamper protection.
• Communication : Wiegand / RS485.
• Built-in Watchdog to prevent system from halting.
• Built-in Buzzer.
• Access methods : Fingerprint / Card+Fingerprint / Card.
• Fingerprint (9,000 templates) verification.
• Optical fingerprint sensor for capturing 2D fingerprint template.
• High accuracy and speed of fingerprint identification.
• The most reliable fingerprint algorithm.
• Fast 1:N matching speed (High performance DSP).
• Low power consumption and fast power-on time.
Specification:
Transmit Frequency 125KHz (EM) / 13.56MHz (Mifare)
Number of Fingerprints 9,000 fingerprints
ID 1-8 (for SYW95A ) or 01-99 (for SYSOFT series)
Read Range 3cm~10cm (Mifare:3cm~7cm)
Fingerprint Sensor Optical Fingerprint Sensor
Communication RS485 / Wiegand
EER(Equal Error Rate) <0.1%
Wiegand Formats 26 / 34 / 42 bits
Beep Tone Built-in Buzzer
Baud Rate 19,200bps (4,800bps ~ 230,400bps)
LED Indicator 3 LED
Anti-Tamper Facility Built-in
Encryption 256 bit AES(fingerprint data protection)
Input Voltage 8V ~ 20V DC / 0.5W ~ 2W
Operating Temperature -10˚C ~ +60˚C
Dimensions(mm) 91W x 146H x 61D
Ordering Information •SYRDF6-P : 125KHz, Optical Fingerprint Reader, Gray color
•SYRDF6-PM1 : 13.56MHz, Optical Fingerprint Reader, Gray color
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
