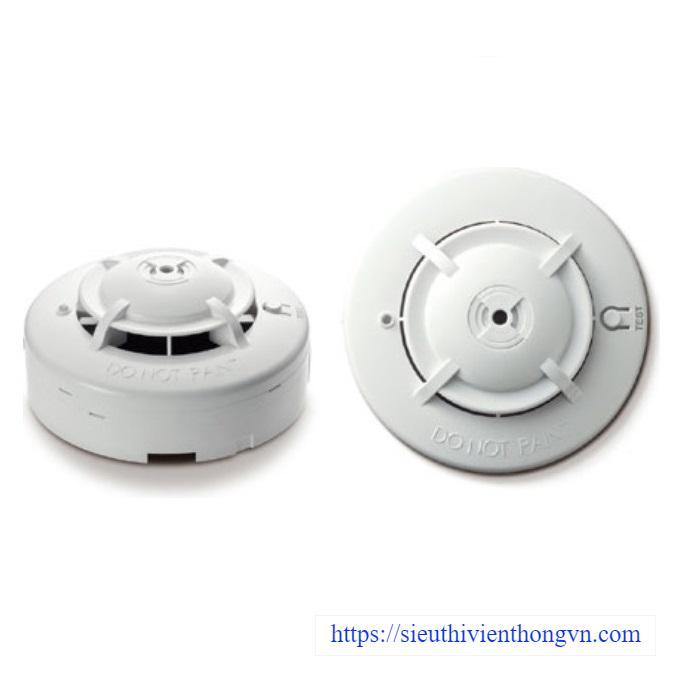

Đầu dò khói HORING NQ-9S
- Single Station Smoke Detector.
- New design on minified chamber makes so easy for maintenance.
- High luminous LED for light guiding design.
- Detector has passed strict EMC test, which greatly eliminates false alarms caused by interference from nearby sources.
- Simple test method: Press test button to hear the alarm sound and confirm the unit is in normal condition.
- Easy installation: Install directly to proper location without any wiring.
- It is equipped with 9VDC battery, and optional 100~240VAC power plug is available.
- Optional relay output: COM. NO. NC.
- Optional series connection wiring can co-activate up to 20 detectors.
Specifications
| Model | NQ-9S |
| Specifications | |
| Power | 9V battery |
| Sensitivity Setting | Comply to EN14604 |
| Indicator | Standby: flash every 45 seconds Alarm: flash and beep continuously Battery abnormal: beeps and flash intermittently |
| Sound | 90dB / M and above |
| Ambient Temperature | 0°C ~ +50°C |
| Material | Fire-proof plastic |
| Dimensions (mm) Dia. x H | 102 x 48 |
| Weight | Aboaut 165g |
| Color | White |
| Optional Function | Type 1: 9V battery Type 2: includes signal transfer COM. N.O. N.C. Type 3: Type 2 + Type 4 Type 4: build-in 110VAC or 220VAC plug |
| Effective alert area | |
| Building Height | Area Covered |
| Under 4M | 150 M2 |
| 4 ~ 20M | 75 M2 |
- Bảo hành: 12 tháng.
