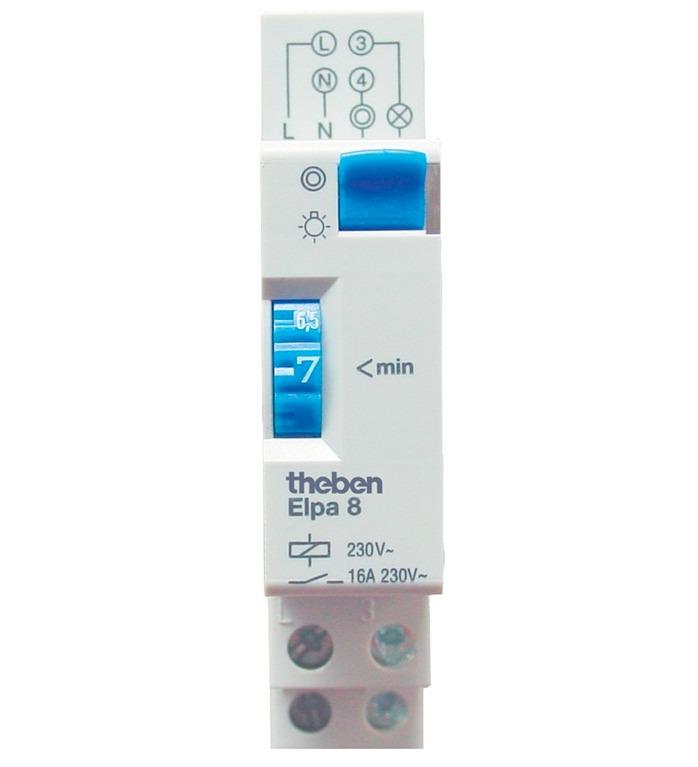

Công tắc hẹn giờ Staircase THEBEN ELPA 8
- Staircase time switch, electro-mechcanical.
- 4 conductor with floor lighting connection.
- 3 conductor without floor lighting (no longer permitted for new systems).
- Retriggerable.
- No closed-circuit current consumption.
- Toggle switch for permanent light ON.
- Reliable due to synchronous motor drive.
- Simplest possible time setting and direct delay time readout on absolute scale.
- Precision mechanics and therefore exact switching period.
- Very low sensitivity to interference.
Specifications
| Model | ELPA 8 |
| Operating voltage | 230 VAC |
| Frequency | 50 Hz |
| Width | 1 modules |
| Installation type | DIN rail |
| Stand-by consumption | ~0W |
| Capacity loss max. | 0,7W |
| Glow lamp load | 50 mA |
| Setting range time | 1 – 7 min |
| Type of connection | 3-/4-conductors |
| 3/4-way conductors | Yes |
| Secondary switching | After 30s |
| Type of contact | NO contact |
| Opening width | > 3 mm |
| Switching output | Not Potential-free (230V) |
| Incandescent/halogen lamp load | 2300 W |
| Fluorescent lamp load (conventional) lead-lag circuit | 2300 VA |
| Fluorescent lamp load (conventional) parallel-corrected | 1300 VA 70 µF |
| Energy saving lamp | 150W |
| LED lamp < 2 W | 30W |
| LED lamp 2-8 W | 300W |
| LED lamp > 8 W | 300W |
| Fluorescent lamp load (electronic ballast) | 600 VA |
| Fluorescent lamp load (conventional) series-corrected | 2300 VA |
| Switching capacity | 6 AX (at 230 V AC, cos φ = 0.3), 16 A (at 230 V AC, cos φ = 1) |
| Switch for permanent light | Toggle switch |
| Test approval | VDE |
| Housing and insulation material | High-temperature resistant, self-extinguishing thermoplastic |
| Ambient temperature | -10°C … +50°C |
| Type of protection | IP20 |
| Protection class | II |
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
