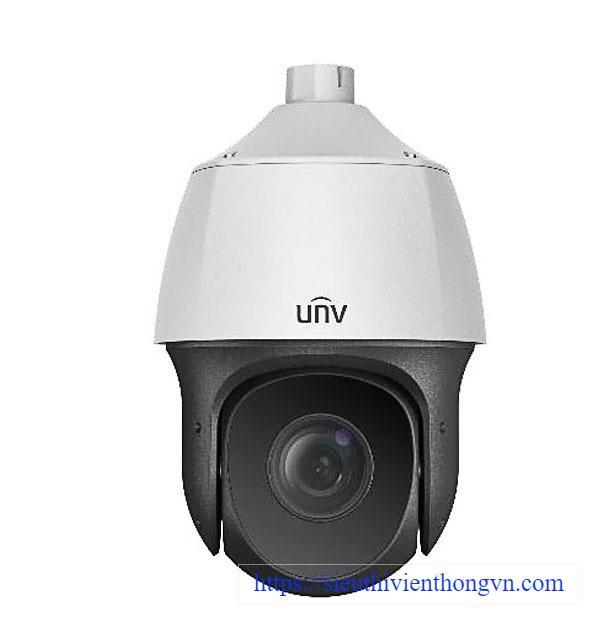

Camera IP Speed Dome hồng ngoại 2.0 Megapixel UNV IPC6322SR-X22P-C
- Cảm biến hình ảnh: 1/2.9 inch progressive scan CMOS.
- Độ phân giải camera ip: 2.0 Megapixel.
- Chuẩn nén hình ảnh: Ultra 265, H.265, H.264, MJPEG.
- Ghi hình: 1920 x 1080@30fps.
- Ống kính: 5.2 ~ 114.4 mm.
- Tầm quan sát hồng ngoại: 150 mét.
- Độ nhạy sáng: Colour: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR on.
- Zoom quang: 22x.
- Zoom số: 16x.
- Hỗ trợ khe cắm thẻ nhớ với dung lượng lên tới 128 GB.
- Hỗ trợ 3 dòng video.
- Hỗ trợ ngõ vào/ra Audio: 1/1.
- Hỗ trợ ngõ vào/ra Alarm: 1/1.
- Chức năng quan sát Ngày/Đêm.
- Chức năng giảm nhiễu kỹ thuật số 2D/3D DRN.
- Chức năng chống ngược sáng kỹ thuật số DWDR.
- Chức năng đếm người ra vào, hàng rào bảo vệ ảo, vạch báo động, phát hiện khuôn mặt, phát hiện chuyển động.
- Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Nhiệt độ hoạt động: –40°C ~ +65°C.
- Nguồn điện: 12 VDC.
- Hỗ trợ chức năng cấp nguồn qua mạng PoE (PSE Required).
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
Đặc tính kỹ thuật
| Model | IPC6322SR-X22P-C | ||||
| Camera | |||||
| Sensor | 1/2.9 inch progressive scan, 2.0 megapixel, CMOS | ||||
| Lens | 5.2~ 114.4 mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 22 | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 5.2mm | 83.6 | 33.4 | 16.7 | 8.4 | |
| 114.4mm | 1838.6 | 735.4 | 367.7 | 183.9 | |
| Angle of View (H) | 54.40°~ 3.44° | ||||
| Angle of View (V) | 39.2° ~1.9° | ||||
| Angle of View (O) | 66.9° ~4.1° | ||||
| Adjustment angle | Pan: 0°~360°, Tilt: 0°~90°, Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000 s | ||||
| Minimum Illumination | Colour: 0.01 lux (F1.5,AGC ON) | ||||
| 0 lux with IR | |||||
| Iris | F1.5 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >55 dB | ||||
| IR Range | UP to 150m (492ft) | ||||
| Defog | Digital Defog | ||||
| WDR | DWDR | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream:2MP (1920×1080):Max. 30 fps; | ||||
| Sub Stream:2MP (1920×1080):Max. 30 fps; | |||||
| Third Stream: D1 (720×576): Max. 30 fps | |||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| EIS | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||
| cross line | Cross a pre-defined virtual line | ||||
| motion detection | Moving within a pre-defined virtual region | ||||
| Recognition | Face detection、Audio detection | ||||
| Statistical Analysis | People counting | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way Audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8 KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | ||||
| Compatible Integration | ONVIF(Profile S, Profile G), API | ||||
| Pan & Tilt | |||||
| Pan Range | 360° | ||||
| Pan Speed | 0.1°/s ~ 240°/s | ||||
| Preset speed: 300°/s | |||||
| Tilt Range | –15° ~ +90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 80°/s | ||||
| Preset speed: 80°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Audio I/O | 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | ||||
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |||||
| Alarm I/O | 1/1 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| General | |||||
| Power | DC 12V±10%, PoE (PSE Required) | ||||
| Power consumption: 16~30 W | |||||
| Dimensions (Ø x H) | Φ215mm×344mm | ||||
| Weight | 3kg | ||||
| Working Environment | –40°C ~ +65°C, Humidity:10%~90% RH (non-condensing) | ||||
| Ingress Protection | IP66 | ||||
| Reset Button | Supported | ||||
- Bảo hành: 02 năm.
