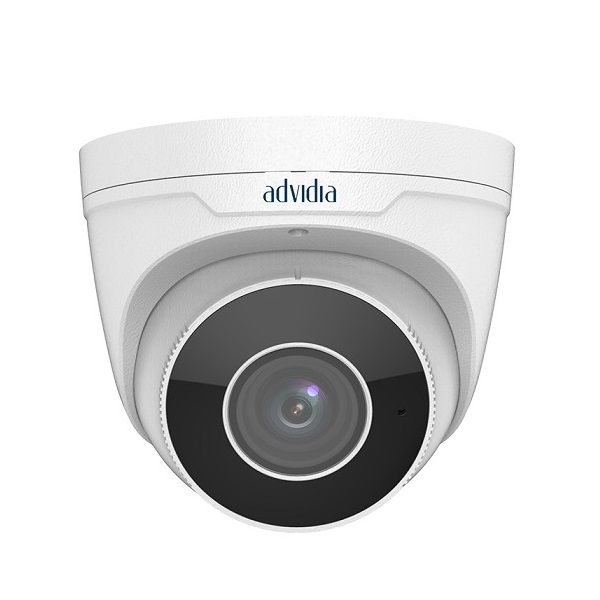

Camera IP Dome hồng ngoại 4.0 Megapixel ADVIDIA M-44-V-T-V2
- Cảm biến hình ảnh: 1/3 inch Progressive Scan CMOS.
- Độ phân giải: 4.0 Megapixel.
- Ống kính: 2.8 ~ 12mm, AF Automatic Focusing and Motorized Zoom Lens.
- Tầm quan sát hồng ngoại: Lên đến 40 mét.
- Hỗ trợ chức năng quan sát Ngày và Đêm (ICR).
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Device | |
| Image Sensor | 1/3 inch 4.0 Megapixel Progressive Scan CMOS |
| Min Illumination | Color: 0.003Lux (F1.6, AGC ON) | 0Lux with IR |
| Shutter Time | Auto/Manual, 1 ~ 1/100000s |
| Lens | 2.8 ~ 12mm, AF Automatic Focusing and Motorized Zoom Lens |
| WDR | 120dB |
| Angle of View | H:102.79°~ 30.86°, V: 54.50°~ 17.49°, O: 106.94°~35.49° |
| Angle Adjustment | Pan: 0° ~ 360° | Tilt: 0° ~ 75° | Rotate: 0° ~ 360° |
| 3-Axis Adjustment | Yes |
| Day & Night | IR-Cut Filter with Auto Switch (ICR) |
| IR Range | Up to 40m (131ft) IR range |
| Compression Standard | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video Bit Rate | 128 Kbps~16 Mbps |
| Dual Streams | Yes |
| Analytics | Intrusion, Human Body Detection, Motion Detection, Tampering Alarm, Audio Detection |
| Image | |
| Max. Image Resolution | 2688 x 1520 |
| Frame Rate | 25fps (2688 x 1520) |
| ROI Codec | Up to 8 areas |
| Image Setting | White Balance, Digital Noise Reduction, Smart IR, Flip, HLC, BLC, Defog |
| Network | |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, Qos, 802.1x, SNMP |
| Interface | |
| Communication Interface | 10M/100M Base-TX Ethernet |
| Local Storage | Micro SD, up to 256GB |
| Audio | Built-in Mic |
| General | |
| Safety | CE: EN 60950-1 UL: UL60950-1 IEC 60950-1 |
| EMC | FCC: FCC Part15 |
| Operating Conditions | Temperature: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (Non-Condensing) |
| Power Consumption | Max 8.0W |
| Power Supply | DC 12V±25%, PoE (IEEE 802.3af) |
| Weather Proof Rating | IP67 |
| Dimensions | Φ129 x 110mm |
| Weight | 0.67kg |
| Software | Includes Video Insight VMS License |
- Thương hiệu của Panasonic.
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 năm.
