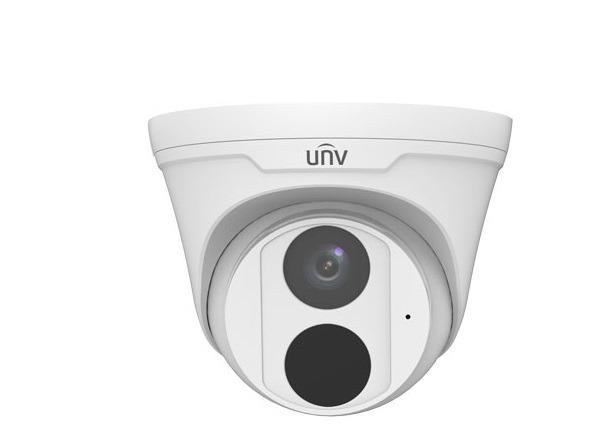

Camera IP Dome hồng ngoại 3.0 Megapixel UNV IPC3613LR3-APF28K-F
- Cảm biến hình ảnh: 1/2.7-inch CMOS.
- Độ phân giải: 3.0 Megapixel (2304x1296).
- Chuẩn nén hình ảnh: Ultra 265/ H.265/ H.264.
- Hỗ trợ 3 luồng video.
- Tầm quan sát hồng ngoại: 30 mét.
- Độ nhạy sáng: Colour: 0.01Lux (F2.0, AGC ON); Lux with IR.
- Hỗ trợ thẻ nhớ lên tới 128GB.
- Hỗ trợ chức năng tự động chuyển ngày đêm, tự động cân bằng ánh sáng trắng.
- Hỗ trợ chống gợn, chống nhiễu 3DNR.
- Hỗ trợ chức năng chống ngược sáng thực DWDR.
- Hỗ trợ chức năng BLC, HLC.
- Hỗ trợ chức năng phát hiện chuyển động.
- Hỗ trợ nhận dạng thông minh: Nhận dạng khuôn mặt.
- Hỗ trợ micro trên camera và cổng ra audio.
- Chuẩn Onvif quốc tế.
- Hỗ trợ tên miền miễn phí trọn đời.
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Chức năng cấp nguồn qua mạng PoE (Power over Ethernet).
- Nguồn điện: DC12V( ± 25% ).
Đặc tính kỹ thuật
| Model | IPC3613LR3-APF28K- |
| Camera | |
| Sensor | 1/2.7-inch, 3.0 megapixel, progressive scan, CMOS |
| Lens | 2.8mm@F2.0 |
| Angle of view (H) | 113.1° |
| Angle of View (V) | 60.6° |
| Angle of View (O) | 139.1° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360° |
| Min. Illumination | Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| S/N | >52dB |
| IR Range | Up to 30m (98ft) IR range |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | DWDR |
| Video | |
| Video Compression | Ultra 265, H.265, H.264 |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Frame Rate | Main Stream: 3MP (2304*1296), Max 20fps; 2MP (1920*1080), Max 30fps; Sub Stream:4CIF (704*576), Max 20fps; |
| Video Bit Rate | 128 Kbps~6 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| Image | |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180° |
| HLC | Supported |
| BLC | Supported |
| Storage | |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR |
| Network | |
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP |
| Compatible Integration | ONVIF(Profile G, Profile T), API |
| Client | EZStation EZView EZLive |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Interface | |
| Network | 10/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| General | |
| Power | DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4W |
| Dimensions (Ø x H) | Φ118 x 96mm |
| Net Weight | 0.33kg (0.73lb) |
| Material | Front cover: metal Rear cover: plastic Bracket: plastic Bottom plate: plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 2KV |
| Ingress Protection | IP67 |
- Bảo hành: 2 năm.
