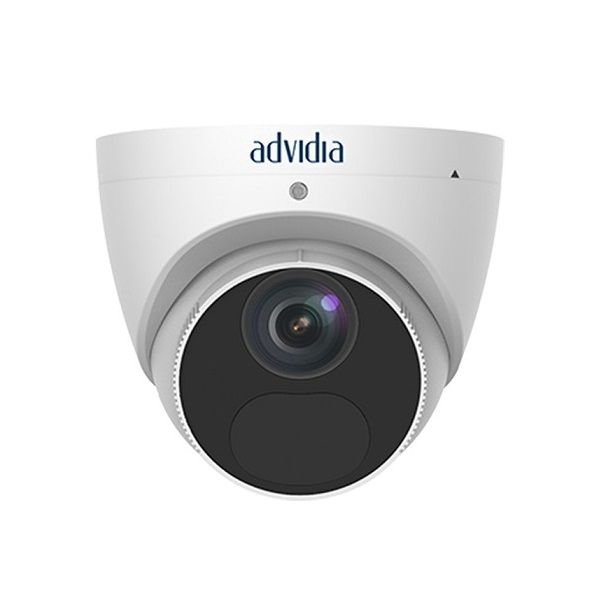

Camera IP Dome hồng ngoại 2.0 Megapixel ADVIDIA M-24-FW-T
- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Độ phân giải: 2.0 Megapixel.
- Ống kính: 2.8mm@F2.0.
- Tầm quan sát hồng ngoại: Lên đến 30 mét.
- Hỗ trợ chức năng quan sát Ngày và Đêm (ICR).
- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
Đặc tính kỹ thuật
| Device | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Min Illumination | Color: 0.01Lux (F2.0, AGC ON) | 0Lux with IR |
| Shutter Time | Auto/Manual, 1 ~ 1/100000s |
| Lens | 2.8mm@F2.0 |
| WDR | 52dB |
| Angle of View | H: 106.7°, V: 57.1°, O: 115.7° |
| Angle Adjustment | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° |
| 3-Axis Adjustment | Yes |
| Day & Night | IR-Cut Filter with Auto Switch (ICR) |
| IR Range | Up to 30m (98ft) IR range |
| Compression Standard | |
| Video Compression | H.265, H.264 |
| Video Bit Rate | 128 Kbps ~ 6 Mbps |
| Two Stream | Yes |
| Analytics | Motion Detection |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Frame Rate | 30fps (1920 x 1080) |
| ROI Codec | Up to 8 areas |
| Image Setting | White Balance, Digital Noise Reduction, Smart IR, Flip, HLC, BLC |
| Network | |
| Protocols | IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP |
| Interface | |
| Communication Interface | 10M/100M Base-TX Ethernet |
| General | |
| Safety | CE, IEC62368-1 |
| EMC | FCC Part 15, EN 55032:2015+A11:2020, EN 55035: 2017+A11:2020 |
| Operating Conditions | Temperature: -30°C~60°C(-22°F~140°F), Humidity:≤95%RH(Non-Condensing) |
| Power Consumption | Max 5.0W |
| Power Supply | DC 12V±25%, PoE (IEEE 802.3af) |
| Weather Proof Rating | IP67 |
| Dimensions | Φ111 x 95mm |
| Net Weight | 0.29kg |
| Software | No license required for use with Video Insight Software |
- Thương hiệu của Panasonic.
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 năm.
