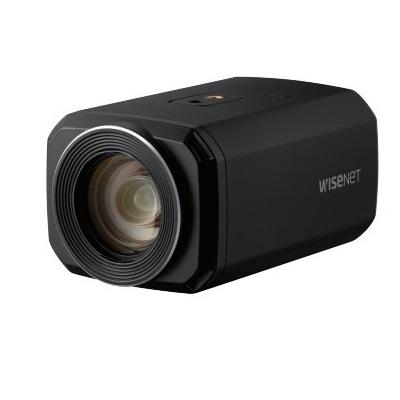

Camera IP 2.0 Megapixel Hanwha Techwin WISENET XNZ-6320/VAP
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải 2.0 Megapixel (1920 x 1080).
- Chuẩn nén hình ảnh: H.264, H.265, MJPEG.
- Ống kính: 4.44 ~ 142.6mm.
- Zoom quang học: 32x.
- Độ nhạy sáng: 0.05 Lux (1/30 sec, F1.6) (Color), 0.005 Lux (1/30 sec, F1.6) (B/W).
- Chức năng thông minh: Tự động theo dõi, nhận diện khuôn mặt, phát hiện đối tượng lảng vảng, bản đồ nhiệt, đếm người, quản lý xếp hàng, phát hiện can thiệp, giả mạo.
- Phân loại âm thanh: Tiếng súng, tiếng kính vỡ, tiếng thét, tiếng nổ.
- Chức năng camera quan sát Ngày và Đêm (ICR).
- Chức năng chống ngược sáng WDR (150db).
- Chức năng chống sương mù Defog.
- Chức năng ổn định hình ảnh kỹ thuật số DIS tích hợp cảm biến Gyro.
- Chức năng giảm tiếng ồn kỹ thuật số.
- Hỗ trợ LDC (Lens Distortion Correction).
- Hỗ trợ WiseStream II.
- Hỗ trợ 2 khe cắm thẻ nhớ micro SD/SDHC/SDXC (dung lượng lên đến 512GB).
- Hỗ trợ âm thanh: 2 chiều.
- Đa ngôn ngữ.
- Chức năng cấp nguồn qua mạng PoE.
- Nguồn cấp: 12VDC.
- Kích thước: 96 x 76 x 143.5mm.
- Trọng lượng: 578g.
Đặc tính kỹ thuật
| VIDEO | |
| Imaging Device | 1/2.8 inch 2.4M CMOS |
| Total Pixels | 1981(H) x 1288(V), 2.55M |
| Effective Pixels | 1944(H) x 1212(V), 2.35M |
| Scanning System | Progressive scan |
| Min. Illumination | Color: 0.05 Lux (1/30 sec, F1.6) |
| B/W: 0.005 Lux (1/30 sec, F1.6) | |
| S / N Ratio | 50dB |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| USB: Micro USB type B, 1280 x 720, for installation | |
| LENS | |
| Focal Length (Zoom Ratio) | 4.44 ~ 142.6mm (Optical 32x) |
| Max. Aperture Ratio | F1.6 (Wide) / F4.4 (Tele) |
| Angular Field of View | H: 61.8˚(Wide) ~ 2.19˚(Tele) / V: 36.2˚(Wide) ~ 1.24˚(Tele) |
| Min. Object Distance | Wide 1.5m (4.92ft), Tele 2m (6.56ft) |
| Focus Control | Auto / Manual / One shot AF |
| Lens Type | DC auto iris |
| Mount Type | Board-in type |
| OPERATIONAL | |
| Camera Title | - W/W: English / Numeric / Special characters |
| - China: English / Numeric/Special / Chinese characters | |
| - Common: Multi-line (Max 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, | |
| Auto scale by resolution | |
| Day & Night | Auto (ICR) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 150dB |
| Contrast Enhancement | SSDR (On / Off) |
| Digital Noise Reduction | SSNR5 (2D+3D noise filter) (On / Off) |
| Digital Image Stabilization | On / Off (Built-in gyro sensor) |
| Defog | Off / Manual / Auto |
| Motion Detection | On / Off (8ea, Polygonal) |
| Privacy Masking | On / Off (24 Zones of rectangle zone) |
| - Color: Grey / Green / Red / Blue / Black / White | |
| - Mosaic | |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 ~ 1 / 12,000sec) |
| Digital Zoom | 32x |
| Flip / Mirror | On / Off |
| Video & Audio Analytics | Tampering, Loitering, Directional detection, Fog detection, Virtual Line, Enter/Exit, |
| Appear/Disappear, Audio detection, Face detection, Motion detection, Sound classification, | |
| Shock detection | |
| Serial Interface | RS-485/RS-422 |
| - Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell | |
| Alarm I/O | Input 1ea / Output 2ea (Relay) |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm events | File upload via FTP and E-Mail, Notification via E-Mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at alarm triggers, External output, Preset |
| Audio In | Selectable (Mic In/Line In) |
| Supply voltage: 2.5VDC (4mA), Input impedance: approx. 2K Ohm | |
| Audio out | Line out (3.5mm), Max. output level: 1 Vrms |
| Pixel counter | Support |
| NETWORK | |
| Ethernet | RJ-45 (10/100BASE-T), SFP (100BASE-FX) |
| Video Compression Format | H.264 (MPEG-4 Part 10/AVC), H.265, Motion JPEG |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, |
| 720 x 480, 640 x 480, 640 x 360, 320 x 240 | |
| Max. Framerate | H.264 / H.265: Max. 60fps at all resolutions |
| Motion JPEG: Max. 30fps at all resolutions | |
| Smart Codec | Manual mode (Area-based: 5ea) |
| WiseStreamⅡ | Support |
| Video Quality Adjustment | H.264 / H.265 / MJPEG : Target bitrate level control |
| Bitrate Control Method | H.264 / H.265: CBR or VBR |
| Motion JPEG: VBR | |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Audio Compression Format | G.711 u-law / G.726 selectable |
| G.726 (ADPCM) 8KHz, G.711 8KHz | |
| G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| AAC-LC : 48Kbps at 16KHz | |
| Audio Communication | Bi-directional (2-Way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering. User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at Unicast mode |
| Edge Storage | Micro SD/SDHC/SDXC 2slot (up to 512 GB) |
| - Continuous recording(1'st slot to 2'nd slot) | |
| - Motion Images recorded in the Micro SD/SDHC/SDXC memory card can be downloaded. | |
| NAS (Network Attached Storage) | |
| Local PC for instant recording | |
| Application Programming Interface | ONVIF Profile S/G, SUNAPI 2.0 (HTTP API), Wisenet Open Plarform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 |
| Plug-in Free Webviewer supported browser: Google Chrome, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari 10 (Mac OS X only) | |
| Plug-in Webviewer supported browser: MS Explorer 11, Apple Safari 10 (Mac OS X only) | |
| Central Management Software | SmartViewer, SSM |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| ELECTRICAL | |
| Input Voltage / Current | 12VDC ± 10%, PoE (IEEE 802.3af, class3) |
| Power Consumption | Max.6.7W (DC12V), Max.7W (PoE) |
| MECHANICAL | |
| Color / Material | Black / Plastic, Metal |
| Dimension | 96 x 76 x 143.5mm |
| Weight | 578g |
- Hãng sản xuất: Hanwha Techwin Việt Nam.
- Bảo hành: 24 tháng.
