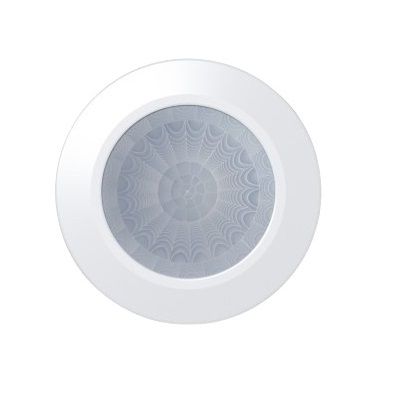

Cảm biến hiện diện có dây LOXONE Presence Sensor Tree White (100466)
Part Number: 100466
- The Loxone Presence Sensor Tree is used to detect presence, motion and brightness in a room.
Thông số kỹ thuật
| Power supply | 9 ~ 30VDC |
| Power consumption | typ. 0.25W |
| Power loss | max. 0.25W |
| Ambient temperature | -25 ~ 70°C |
| Humidity | max. 95% r.H. (non condensing) |
| Motion detection | passive infrared sensor |
| Motion detection range | 8m (at height of 3m) |
| Recommended installation height | 2.5 ~ 3.5m |
| Installation height | max. 3.5m |
| Detection angle vertical | 110° |
| Detection angle horizontal | 360° |
| Measuring range of brightness sensor | 0 ~ 32000lx |
| Acoustic detection | 60Hz ~ 20kHz, mono |
| Color | White |
| Finish | Matte |
| Weight | 150g |
| Dimensions | Outer diameter of bezel: 86mm Installation depth: 40mm Hole diameter: 68 ~ 72mm |
- Bảo hành: 24 tháng.
