FEATURES HIGHLIGHTS

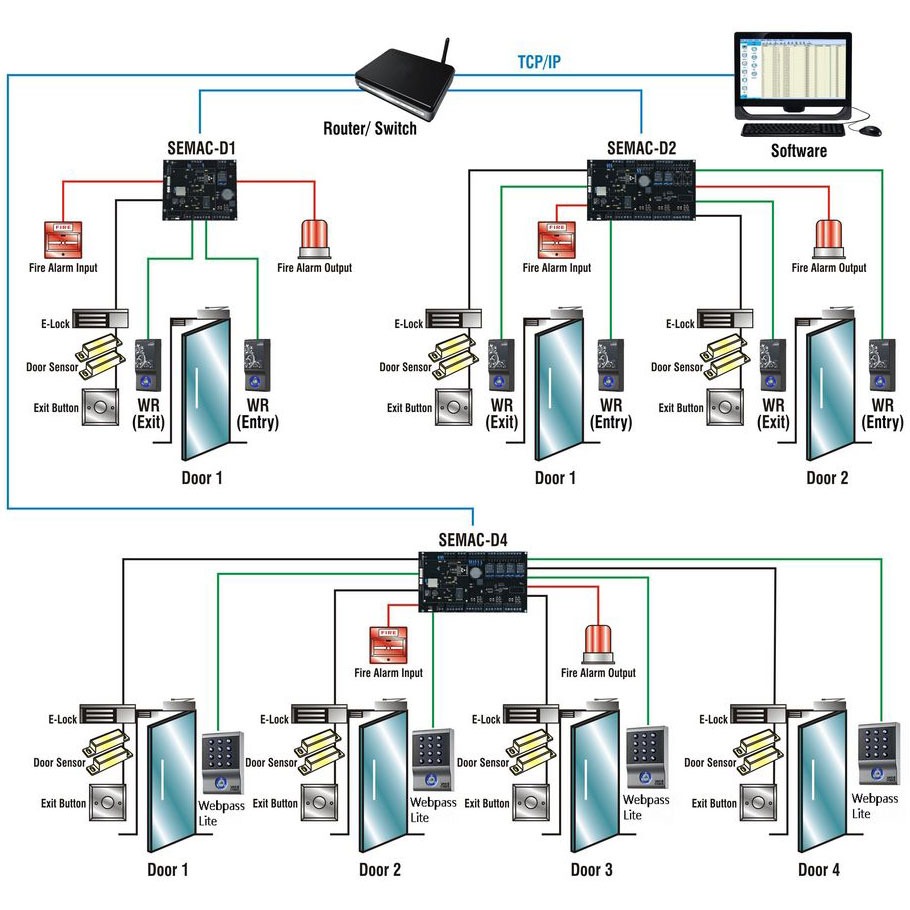

- Application for 1 door (D1), 2 doors (D2), 4 Doors (D4).

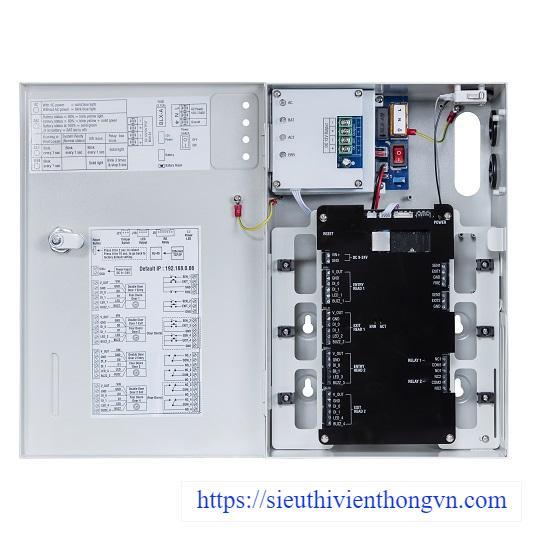

- Optional with functional design power box.
- Inbuilt relays for door exit button / door lock / door sensor.

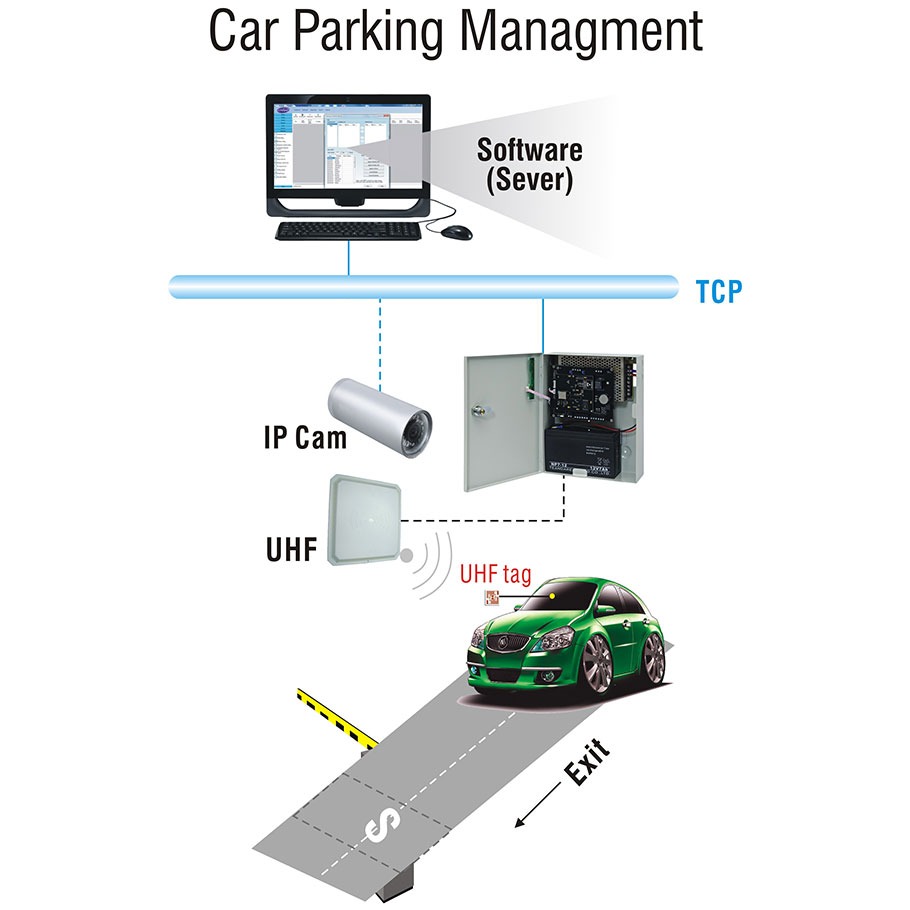

- IP Camera integrated if needed for real time image monitoring.
- Up to 20,000 user accounts can be registered.
- Economic solution for RFID card access control site.
- Remote control integrated.
PRODUCT SPECIFICATION
| Model | SEMAC-D1 | SEMAC-D2 | SEMAC-D4 |
|---|---|---|---|
| Door Capacity | 1 | 2 | 4 |
| Wigand Interface | 2 | 4 | 4 |
| Exit Button Connection | 1 | 2 | 4 |
| EM Lock Connection | 1 | 2 | 4 |
| Sensor Connection | 1 | 2 | 4 |
| Access Log | 60,000 entries | 60,000 entries | 60,000 entries |
| Extendable TTL Interface (Require extra component) | 2 (Reserved) | 1 (Reserved) | 1 (Reserved) |
| Extendable Input (Require extra component) | 2 (Reserved) | 2 (Reserved) | 2 (Reserved) |
| Extendable Output (Optional relay box module) | 4 (Optional) | 4 (Optional) | 4 (Optional) |
| Fire Alarm Connection | √ | √ | √ |
| Power Box LED Connection | √ | √ | √ |
| TCP/IP Interface | √ | √ | √ |
| Two Ways Access Control | √ | √ | X |
| Accessibility To Wiegand Reader's Light and Buzzer | √ | √ | √ |
| Power Requirement | DC 9 ~ 24V | DC 9 ~ 24V | DC 9 ~ 24V |
| Power Consumption (Exclude external device) | 180mA | 220mA | 300mA |
| Suggest Power Spec. (Include extra relay box module and wiegand readers) | 1A | 1.5A | 2A |
| EM Lock Relay Box Spec. | 10A 277VAC / 28VDC | 10A 277VAC / 28VDC | 10A 277VAC / 28VDC |
| Extend Input Spec. | 0 ~ 3.3V | 0 ~ 3.3V | 0 ~ 3.3V |
| Extend Output Spec. | 0 ~ 3.3V | 0 ~ 3.3V | 0 ~ 3.3V |
| Wiegand Reader Power Requirement | 9 ~ 24V | 9 ~ 24V | 9 ~ 24V |
| Reader Communication Mode | Wiegand 26 ~ 66 bit | Wiegand 26 ~ 66 bit | Wiegand 26 ~ 66 bit |
| Max. Range For Wiegand Reader | 80 Meters | 80 Meters | 80 Meters |
| Operation Temperature | 0 ~ 55°C | 0 ~ 55°CC | 0 ~ 55°C |
| Operation Humidity | 5% ~ 80%, RH | 5% ~ 80%, RH | 5% ~ 80%, RH |
| Dimension / Weight | 138 x 114 x 27mm / 150g | 200 x 114 x 27mm / 200g | 200 x 114 x 27mm / 250g |
REMARKS
- Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods
