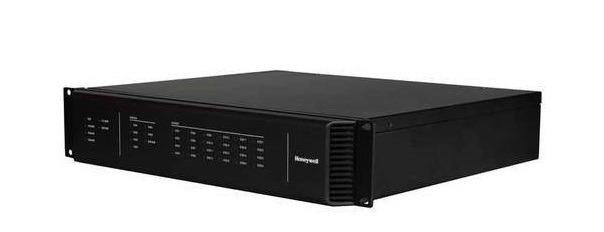

Bộ mở rộng 8 vùng Honeywell HEX-8
- Zone (Vùng loa): 8
- Channel (Kênh âm thanh): 2
- Contact input: 8, Contact output: 8
- Có khả năng phát hiện và chỉ báo lỗi
- Kết nối tối đa 15 bộ HEX-8 trong một hệ thống
- Nguồn điện: 100-240VAC, 50/60Hz
- Nhiệt độ hoạt động: -10°C~+55°C
- Kích thước: 482 ×88 ×407 mm (W x H x D)
Features
- Complies with international standards
- A highly compact and integrated system
- Simple and easy to use with an innovative design
- Provides easy access to status updates, amplifer backup, logging and direct paging capabilities
- Plug-and-play with default settings
- Intuitive set-up with step-by-step guided interaction between buttons and screens
- Can achieve all calls by confgurable keys
- Auto configures when components are physically connected
Specifications
| Model | HEX-8 |
| Main power supply voltage | AC 220-240V, 50/60Hz |
| Backup power supply voltage | AC 220-240V, 50/60Hz |
| Main power supply fuse | T2AL 250V |
| Rated power | 35W |
| LINE INPUT | |
| Input signal | 1V(0dBV) |
| Input impedance | 20 KΩ |
| Frequency response | 80Hz-18KHz |
| SNR | >85dB, A weighted |
| AUDIO OUTPUT | |
| Output channel | CH1, CH2 |
| Output signal | 1V (0dBV) |
| THD | <0.1% |
| POWER AMPLIFIER CONTROL INTERFACE | |
| Channel No. | 3 (CH1, CH2 and spare amplifier) |
| Output signal | 1.4V |
| THD | <0.1% |
| Control signal | Self-testing, amplifier fault and power saving control signal |
| LOUDSPEAKER CIRCUIT | |
| Output channel No. | 8 (with group A and group B) |
| Maximum loudspeaker load | 500W |
| CONTACT INPUT/OUTPUT | |
| Contact input | 8 monitored contact input ports |
| Contact output | 8 contact output ports (NO, NC and COM) |
| Max. working voltage for output | AC 250V/DC 30V |
| Max. working current for output | 2.5A |
| OTHERS | |
| DC power output | 24V/1A |
| Humidity | < 95%, without condensing |
| Operating temperature | -10°C~+55°C |
| Dimension (W×H×D) | 482 ×88 ×407 mm |
| Weight | 7.5Kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
