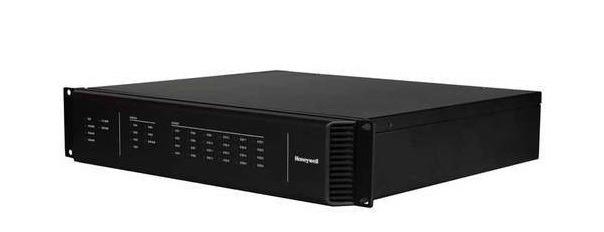

Bộ mở rộng 24 vùng Honeywell HEX-24
- Zone (Vùng loa): 24
- Channel (Kênh âm thanh): 1
- Contact inputs: 24
- Có khả năng phát hiện và chỉ báo lỗi
- Kết nối tối đa 5 bộ HEX-24 trong một hệ thống
- Nguồn: AC 100-240V, 50/60Hz
- Nhiệt độ hoạt động: -10°C~+55°C
- Kích thước: 482 ×88 ×407 mm (W x H x D)
Features
- Complies with international standards
- A highly compact and integrated system
- Simple and easy to use with an innovative design
- Provides easy access to status updates, amplifer backup, logging and direct paging capabilities
- Plug-and-play with default settings
- Intuitive set-up with step-by-step guided interaction between buttons and screens
- Can achieve all calls by confgurable keys
- Auto configures when components are physically connected
Specifications
| Model | HEX-24 |
| Main power supply voltage | AC 220-240V, 50/60Hz |
| Backup power supply voltage | AC 220-240V, 50/60Hz |
| Main power supply fuse | T2AL 250V |
| Rated power | 40W |
| LINE INPUT | |
| Input signal | 1V(0dBV) |
| Input impedance | 10 KΩ |
| Frequency response | 80Hz-18KHz |
| SNR | >90dB, A weighted |
| POWER AMPLIFIER CONTROL INTERFACE | |
| Channel No. | 2 (CH1 and spare amplifier) |
| Output signal | 1.4V |
| THD | <0.1% |
| Control signal | Self-testing, amplifier fault and power saving control signal |
| LOUDSPEAKER CIRCUIT | |
| Output channel No. | 24 |
| Maximum loudspeaker load | 500W |
| CONTACT INTERFACE | |
| Contact input | 24 contact inputs (not monitored) |
| OTHERS | |
| Humidity | < 95%, without condensing |
| Operating temperature | -10°C~+55°C |
| Dimension (W×H×D) | 482 ×88 ×407 mm |
| Weight | 7.8Kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
