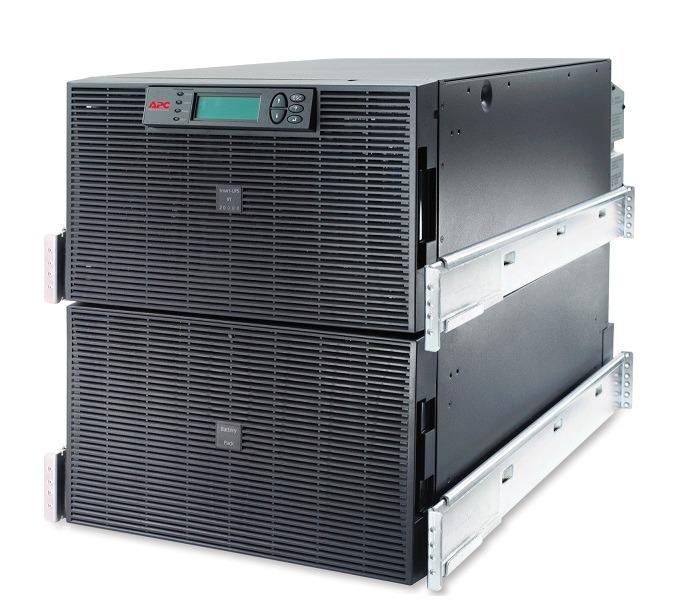

Bộ lưu điện UPS APC SURT20KRMXLI
- Công suất (Power Capacity): 16.0kWatts/20.0kVA.
- Công nghệ (Technology): Double Conversion Online.
- Nguồn điện ngõ ra: 230VAC.
- Tần số ngõ ra: 50/60Hz +/-3Hz user adjustable +/-0.1.
- Tần số ngõ vào: 40-70Hz (auto sensing).
- Dạng sóng: Sóng Sine.
- Thời gian sạc: 2.5 giờ.
- Cổng kết nối: DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot.
- Kích thước (Height x Width x Depth): 533x432x773 mm.
- Trọng lượng: 247.73kg.
Đặc tính kỹ thuật
| Output | |
| Max Configurable Power (Watts) | 16.0kWatts / 20.0kVA |
| Output Voltage Note | Configurable for 400 or 415V 3 Phase nominal output voltage |
| Output Voltage Distortion | Less than 5% |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
| Other Output Voltages | 220, 240 |
| Load Crest Factor | 3 : 1 |
| Topology | Double Conversion Online |
| Waveform type | Sine wave |
| Overload Operation | 60 seconds @ 125% and 30 seconds @ 150% |
| Bypass | Built-in Static Bypass, Internal Bypass (Automatic and Manual), Optional External Bypass |
| Input | |
| Input frequency | 40 - 70Hz (auto sensing) |
| Input voltage range for main operations | 160 - 280V |
| Input Total Harmonic Distortion | Less than 5% for full load |
| Other Input Voltages | 220, 240 |
| Input Power Factor at Full Load | 0.98 |
| Batteries & Runtime | |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Included Battery Modules | 4 |
| Typical recharge time | 2.5hour(s) |
| Nominal Battery Voltage | +/-192 V (split battery referenced to neutral) |
| Replacement Battery | APCRBC140 |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 4 |
| Extendable Run Time | 1 |
| Battery Volt-Amp-Hour Capacity | 3840 |
| Extended Run Options | APC-Smart-UPS-RT-20kVA-RM-230V |
| End of Discharge Battery Voltage | +/-154 V |
| Efficiency in Battery Operation | 93.00% |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot |
| Pre-Installed SmartSlot Cards | AP9631 |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Audible and visible alarms : configurable delays |
| Emergency Power Off (EPO) | Yes |
| Surge Protection and Filtering | |
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Physical | |
| Dimension (Height x Width x Depth) | 533x432x773 mm |
| Net Weight | 247.73kg |
| Color | Black |
| Units per Pallet | 1.0 |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 (non-condensing) % |
| Operating Elevation | 0-3000meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95 (non-condensing) % |
| Storage Elevation | 0-15000meters |
| Audible noise at 1 meter from surface of unit | 59.0dBA |
| Online thermal dissipation | 3770.0BTU/hr |
| Protection Class | IP 20 |
- Bảo hành: 3 năm cho thiết bị (electronics) và 2 năm cho pin (battery).
