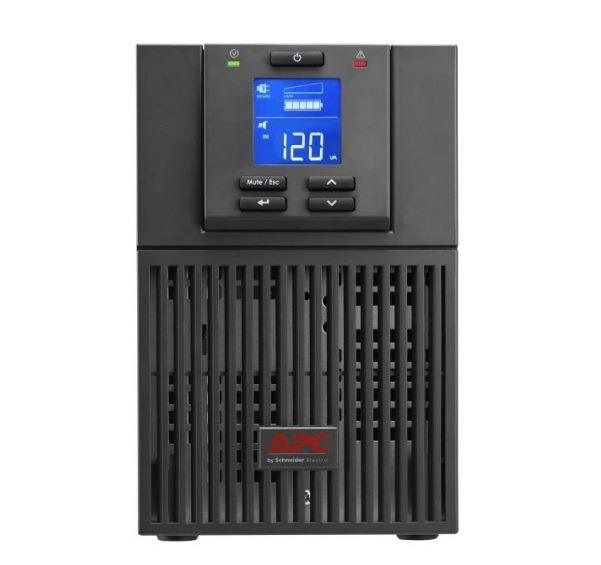

Bộ lưu điện UPS APC SRV1KA
- Công suất: 1000VA/ 800W.
- Công nghệ: Double-conversion Online.
- Dạng sóng: Sóng sine.
- Pha: 1.
- Nguồn điện ngõ ra: 120V.
- Tần số ngõ ra: 50/60Hz +/- 3 Hz.
- Điện áp ngõ vào: 120V.
- Tần số ngõ vào: 40 - 70 Hz.
- Loại ắc-quy: Sử dụng loại kín khí không cần bảo dưỡng.
- Thời gian sạc: 4 giờ.
- Cảnh báo âm thanh: Báo khi đang sử dụng pin, pin yếu, báo quá tải.
Đặc tính kỹ thuật
| Model | SRV1KA |
| Output | |
| Output power capacity | 800 W/ 1000 VA |
| Max Configurable Power | 800 W/ 1000 VA |
| Nominal Output Voltage | 120V |
| Output Voltage Distortion | 3% |
| Output Frequency | 50/60Hz +/- 3 Hz |
| Other Output Voltages | 110V, 115V |
| Crest Factor | 3:01 |
| Topology | Double Conversion Online |
| Waveform | Sine wave |
| Output Connections | (4) NEMA 5-15R (Battery Backup) |
| Input | |
| Nominal Input Voltage | 120V |
| Input frequency | 40 - 70 Hz |
| Input Connections | NEMA 5-15P |
| Input voltage range for main operations | 160 - 280V |
| Other Input Voltages | 110V, 115V |
| Batteries & Runtime | |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Battery | 12V/ 9 AH x 2 |
| Typical recharge time | 4hour(s) |
| Runtime Estimates | |
| Half Load Runtime | 11 min |
| Full Load Runtime | 4 min |
| Communications & Management | |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
| General | |
| Dimensions | 223 x 145 x 288 mm |
| Weight | 9.6kg |
| Operating Temperature | 0 - 40°C |
| Operating Relative Humidity | 0 - 95% (non-condensing) |
- Bảo hành: 3 năm cho thiết bị (electronics) và 2 năm cho pin (battery).
