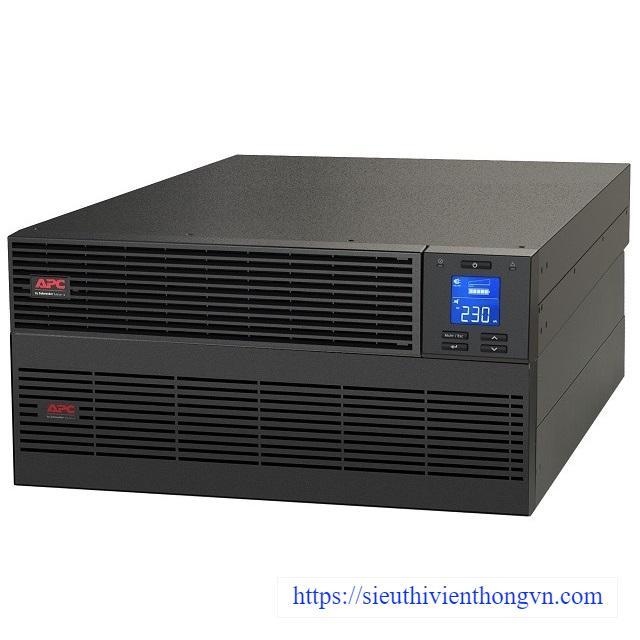

Bộ lưu điện UPS APC SRV10KRIL
- Công suất: 10kVA/ 10kW.
- Dạng sóng: Sóng sine.
- Pha: 1.
- Điện áp ngõ ra: 230V.
- Tần số ngõ ra: 50/60Hz +/- 3 Hz.
- Điện áp ngõ vào: 230V.
- Tần số ngõ vào: 40 - 70 Hz.
- Thời gian sạc pin: 3 giờ.
- Cảnh báo âm thanh: Báo khi đang sử dụng pin, pin yếu, báo quá tải.
Đặc tính kỹ thuật
| SKU | SRV10KRIL + SRV240RBP-9A |
| Output | |
| Output power capacity | 10kVA/ 10kW |
| Nominal Output Voltage | 230V |
| Output Frequency | 50/60Hz ± 3 Hz |
| Other output voltages | 220V, 240V |
| Crest Factor | 3:1 |
| Topology | Double Conversion Online |
| Waveform | Sine wave |
| Input | |
| Nominal Input Voltage | 230V |
| Input frequency | 40 - 70 Hz |
| Input Connections | Hard Wire 3-wire |
| Other Input Voltages | 220V, 240V |
| External Battery Pack (SRV240RBP-9A) | |
| Charging Current | 1 to 4 A (adjustable) |
| Battery Type | Maintenance-free sealed Lead-Acid battery |
| Typical recharge time | 3 hour(s) |
| Half Load Runtime | 21 min |
| Full Load Runtime | 8 min |
| Communications & Management | |
| Control panel | Multi-function LCD status and control console |
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
| Emergency Power Off (EPO) | Yes |
| General | |
| Dimensions (DxWxH) | Power Module: 615 x 438 x 86.5 (2U) mm |
| Battery Pack: 606 x 438 x 131 (3U) mm | |
| Weight | 69kg |
| Operating Temperature | 0 - 40°C |
| Operating Relative Humidity | 0 - 95% (non-condensing) |
- Bảo hành: 3 năm cho thiết bị (electronics) và 2 năm cho pin (battery).
