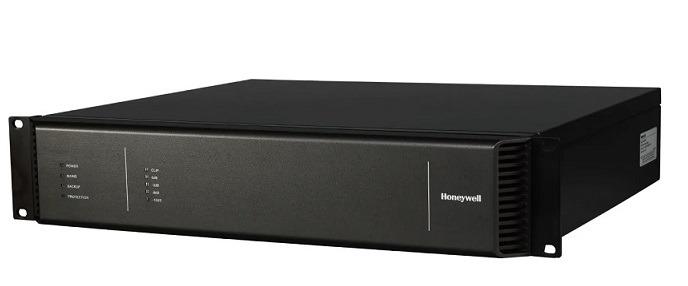

Bộ khuếch đại công suất 500W Honeywell HAM-2000
- Ampli hiệu năng: Class-D
- Khuếch đại công suất: 500W
- AUX inputs: 2
- Nguồn điện: 220V-240VAC, 50/60Hz
- Nhiệt độ hoạt động: -10°C~+55°C
- Kích thước: 482 ×88 ×407 mm (W x H x D)
Features
- Class-D technology, high effciency and low power consumption
- Maximum 500W rated output power
- Supports 70V/100V audio outputs
- Supports balanced or unbalanced audio inputs
- Supports 100V audio input
- Forced air cooling
- Automatically limits the output voltage
- Supports automatic protection and fault detection
Specifications
| Model | HAM-2000 |
| Main power supply voltage | AC 220-240V, 50/60Hz |
| Backup power supply voltage | AC 220-240V, 50/60Hz |
| Power consumption | <720W |
| Main power supply fuse | T10AH 250V |
| Amplifier output | 70V / 100V |
| Rated output power | 500W |
| Frequency response | 80Hz~18KHz (+1dB ~ - 3dB) |
| Input impedance | 20KΩ |
| Input sensitivity (RJ-45) | 1.4V |
| AUX. Input 1 | 1.4V |
| AUX. Input 2 | 100V |
| Audio cascade output | 1.4V |
| SNR | 100 dB ±5%, A weighted |
| Non-linear distortion | <0.1% (at 1/3 rated power, 1kHz) |
| Indicator lights | Power, main power fault, backup power fault, protection and signal level indicator |
| Cooling method | Air cooling |
| Humidity | < 95%, without condensing |
| Operating temperature | -10°C~+55°C |
| Dimensions | 482 ×88 ×407 mm |
| Weight | 10.6Kg |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
