Bộ điều khiển từ xa TOA ZM-9014
- Designed for exclusive use with the 9000M2 Series amplifier or M-864D.

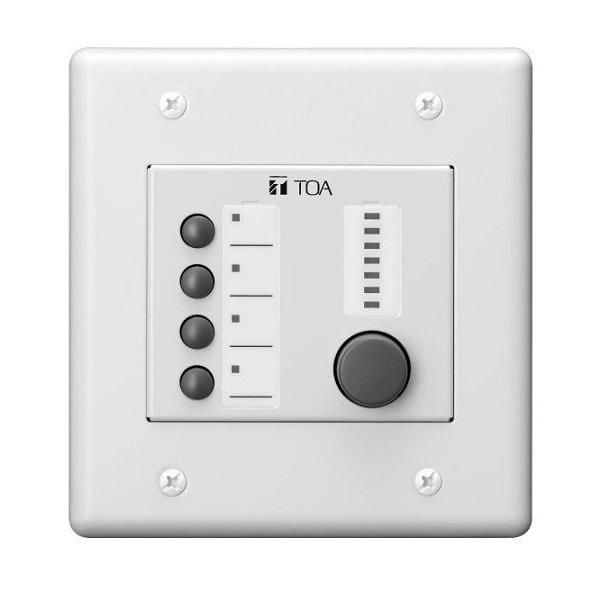

- The ZM-9014 is a wall mounted remote control panel having 4 buttons and 1 volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in an American standard 2-gang electrical box in the wall.
Specifications
| Model | ZM-9014 |
| Power Source | 24 VDC (supplied from RC-001T or M-864D) |
| Current Consumption | 50 mA or less |
| Terminal | Removable terminal block (10 pins) |
| Connection Cable | Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP) |
| Operating Section | 4 function buttons, 1 volume control |
| Indicator | 4 function indicators (green LEDs), Level indicators (green LEDs) |
| Operating Temperature | 0ºC to +40ºC |
| Operating Humidity | 35 % to 80 %RH (no condensation) |
| Finish | Surface-treated steel plate, white, paint |
| Dimensions (WxHxD) | 120 x 127 x 58.5 mm |
| Weight | 374 g |
- Sản xuất tại Trung Quốc.
- Bảo hành: 12 tháng.
