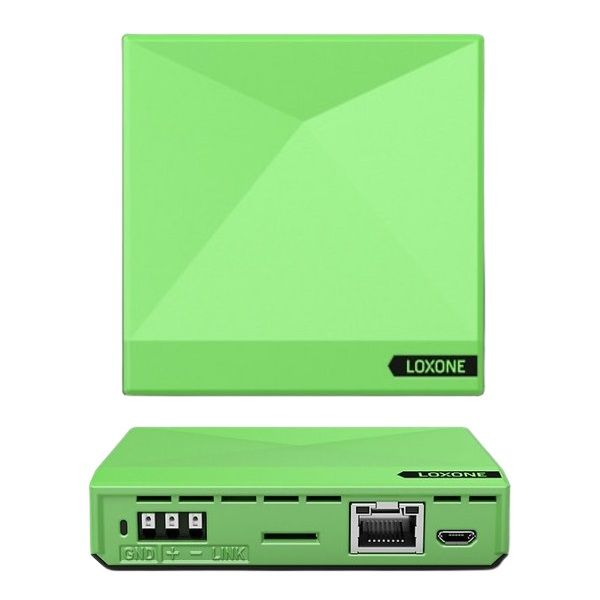

Bộ điều khiển trung tâm LOXONE Miniserver Go (100336)
- Cấp nguồn: 5VDC (qua Micro USB)
- Kết nối lên đến 128 thiết bị Air
- Loxone Link: lên đến 30 Extension
- LAN IPv4, IPv6, HTTPS/SSL
- Khe cắm thẻ nhớ SD
- Nhiệt độ môi trường hoạt động: 0 ~ 40°C, IP20
- Kích thước: 90x90x20mm
- Chứng nhận: UL 62368-1 CSA C22.2#62368-1, Intertek, CE
Thông số kỹ thuật
| Model | Miniserver Go |
| Electrical Data | |
| Power supply | 4.4 ~ 5.25VDC via included micro USB power supply |
| Power consumption | typ. 0.94W, max. 2.65W |
| Power loss at max. load | 2.65W |
| Interface | Loxone Air: 868MHz (SRD Band Europe), 4 channels available max. Power 15.1mW e.r.p. 915MHz (ISM Band Region 2), 10 channels available max. Power 13.2mW internal antenna Loxone Link: connection with up to 30 Extensions LAN: 100Mbps, IPv4/IPv6, HTTPS, SSL/TLS |
| Ambient temperature | 0 ~ 40°C |
| Humidity | max. 95% r.H. (non condensing) |
| Power reserve of internal clock in case of power failure | 64 hours |
| Loxone Link Connections | |
| Wire cross-section | 0.2 ~ 1.5mm² / AWG24 ~ 16 |
| Stripping length | 8mm |
| Temperature resistance | -40 ~ 105°C |
| Micro USB Connector | |
| Connector type | Micro USB 2.0 Type B |
| Others | |
| Colour | Green |
| Weight | 90g |
| Dimensions (LxWxH) | 90x90x20mm |
| Safety rating | IP20 |
- Bảo hành: 24 tháng.
