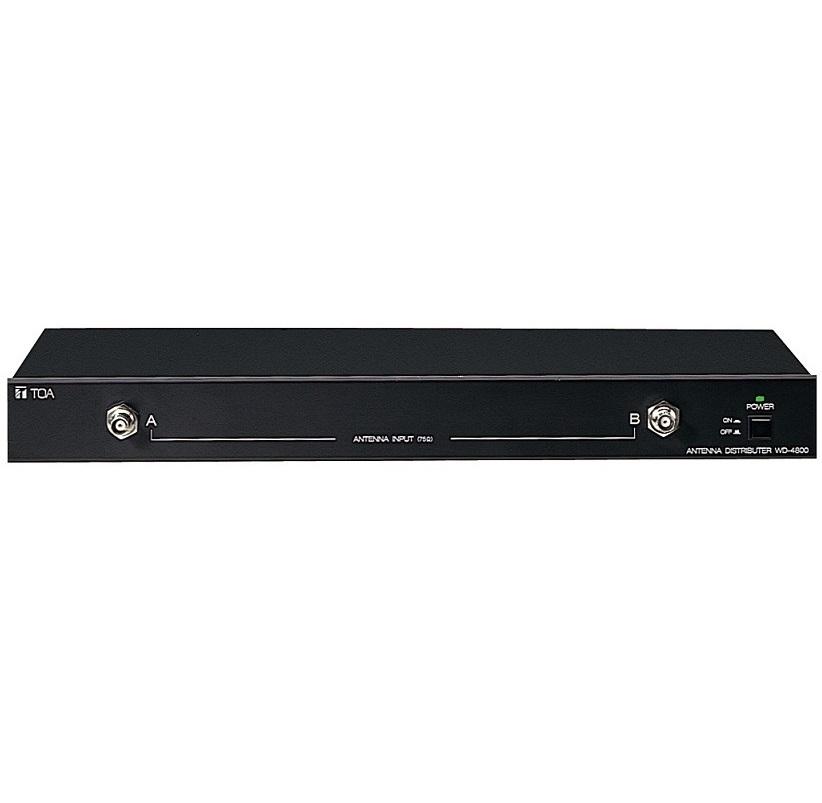

Bộ chia antenna TOA WD-4800
- The TOA Wireless Antenna Distributor WD-4800 is designed to be used in conjunction with VHF/UHF band system. It comes with two channels, in which two input signals are mixed and distributed to four outputs. The WD-4800 also has four DC power distribution outputs.
Specifications
| Model | WD-4800 |
| Power Requirement | 120V (120V/230V selectable) |
| Power Consumption | 25 W |
| Frequency Range | VHF/UHF |
| Antenna Input | 2 input (front × 1, rear × 1), 75 Ω, BNC (phantom powering for antenna) |
| Antenna Output | 4 output, 75 Ω, BNC |
| DC Power Supply | 4 output (each output: 13 V DC/250 mA) |
| Indicator | Power |
| Operating Temperature | -10ºC ~ 50ºC |
| Finish | Steel, coating |
| Dimensions | 420 x 44 x 305.5 mm |
| Weight | 3.5kg |
- Sản xuất tại Đài Loan.
- Bảo hành: 12 tháng.
