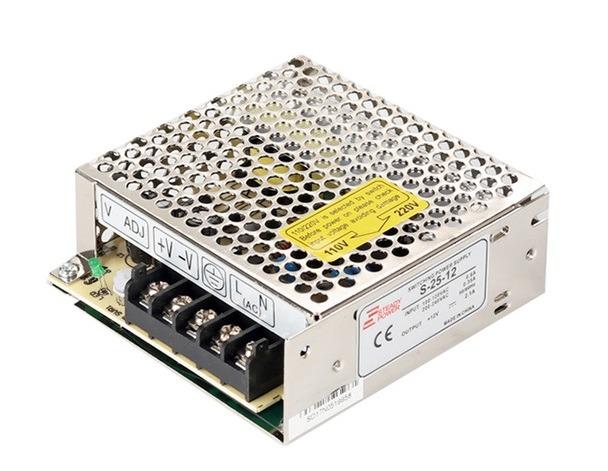

Bộ cấp nguồn dự phòng STEADY STD-25W/12V
- Công suất: 25W/12V.
- Bảo vệ chống ngắn mạch, quá dòng, quá áp.
Đặc tính kỹ thuật
| Output | DC Voltage | 12V |
| Current rating | 2.1A | |
| Current range | 0 ~ 2.1A | |
| Wattage | 25.2W | |
| Ripple & Noise (maximum) | 100mVp-p | |
| Voltage Adj. Strip | 10.8 ~ 13.2V | |
| Set, time increased | 300ms, 50ms / 230VAC 800ms, 50ms / 115VAC when fully loaded | |
| Input | Input voltage range | 85 ~ 132VAC / 170 ~ 264VAC is selected by 240 ~ 370VDC switch |
| Frequency range | 47 ~ 63HZ | |
| Effectiveness (Typ.) | 81.5% / 115VAC | |
| Alternating current (typ.) | 0.6A / 115VAC 0.35A / 230VAC | |
| Inrush Current (Typ.) | COLD START 15A / 115VAC 30A / 230VAC | |
| Protect | Overload | 110 ~ 150% of the rated output power Protection type: Hiccup mode, automatic recovery after error conditions are eliminated |
| Overvoltage | 13.8V ~ 16.2V Protection type: Hiccup mode, automatic recovery after error conditions are eliminated. | |
| Environment | Working temperature | -10 ~ + 60 ° c (refer to 'Derating Curve') |
| Working Humidity | 20 ~ 90% RH No condensation | |
| Storage temperature & humidity | -20 ~ + 85 ° C, 10 ~ 95% RH | |
| Temperature. coefficient | ± 0.03% / ° C (0 ~ 50 ° C) | |
| Vibrate | 10 ~ 500Hz, 2G 10 minutes. Duration, time 60 minutes. Each axis along the X, Y, Z axes |
- Bảo hành: 12 tháng.
