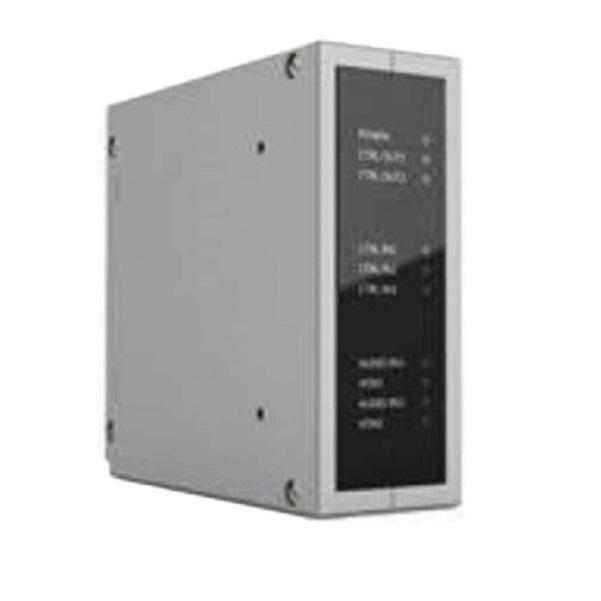

Audio Control Module Honeywell HN-AIO2X2
- 3-channel control input, supports both voltage signal and switch signal.
- 2-channel control output, contains NO, NC and COM ports.
- 2-channel audio difference input, be able to set input level.
- 2-channel audio difference output.
- Link control output via the control input or the audio input.
- Be able to configurable via RS-232 interface.
- Be able to install in DIN guideway that comply with EN 60715.
Specifications
| Power supply | 24VDC ± 5% |
| Rated Power | 2 W |
| Audio Input | |
| Input channels | 2 |
| Input signals | LINE: 0 dB V (1V), Balanced MIC: -40 6 dB V (5mV), Balanced |
| Input impendance | 20 KΩ |
| Frequency response | 20 ... 20 KHz |
| SNR | >87 dB |
| Audio Output | |
| Output channels | 2 |
| Output signals | 0 dB V (1V) |
| SNR | <0.05% |
| Control Input | |
| Interface qty. | 3 |
| Input signal type | Voltage signal or switching signal |
| Effective range of low level | 0 ... 0.3 V DC |
| Effective range of high level | 3.3 ... 24 V DC |
| Control Output | |
| Interface qty. | 2 (NO, NC and COM) |
| Maximum current & voltage | AC 10 A / 277 V, AC 12 A / 125 V |
| Others | |
| Operating temperature | -10°C ... +55°C |
| Storage temperature | -40°C ... +70°C |
| Relative humidity | <95%, without condensing |
| Dimension | W: 126.5mm H: 118mm D: 45mm |
| Net weight | 0.23 kg |
- Bảo hành: 12 tháng.
