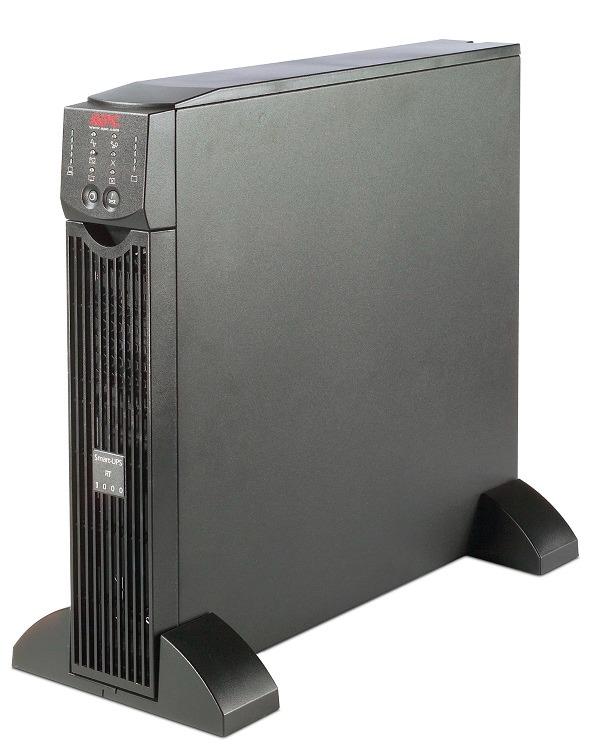

Bộ lưu điện UPS APC SURT1000XLI
- Công suất (Power Capacity): 700Watts/1.0kVA.
- Công nghệ (Technology): Double Conversion Online.
- Nguồn điện ngõ ra: 230VAC.
- Tần số ngõ ra: 50/60Hz +/-3Hz user adjustable +/-0.1.
- Tần số ngõ vào: 50/60 Hz +/-5Hz (auto sensing).
- Dạng sóng: Sóng Sine.
- Thời gian sạc: 3 giờ.
- Cổng kết nối: DB-9 RS-232, SmartSlot.
- Kích thước (Height x Width x Depth): 432x85x483 mm.
- Trọng lượng: 23 kg.
Đặc tính kỹ thuật
| Output | |
| Max Configurable Power (Watts) | 700Watts / 1.0kVA |
| Output Voltage Note | Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion | Less than 3% |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 |
| Other Output Voltages | 220, 240 |
| Load Crest Factor | 3 : 1 |
| Topology | Double Conversion Online |
| Waveform type | Sine wave |
| Bypass | Built-in Bypass |
| Input | |
| Input frequency | 50/60 Hz +/- 5 Hz (auto sensing) |
| Input voltage range for main operations | 160 - 280V |
| Input voltage adjustable range for mains operation | 100 - 280V |
| Number of Power Cords | 1 |
| Other Input Voltages | 220, 240 |
| Batteries & Runtime | |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Included Battery Modules | 1 |
| Typical recharge time | 3hour(s) |
| Expected Battery Life (years) | 3 - 5 |
| RBC Quantity | 1 |
| Extendable Run Time | 1 |
| Battery Volt-Amp-Hour Capacity | Battery Volt-Amp-Hour Capacity |
| Extended Run Options | APC-Smart-UPS-RT-1000VA-230V |
| Communications & Management | |
| Interface Port(s) | DB-9 RS-232, SmartSlot |
| Control panel | LED status display with load and battery bar-graphs and On Line: On Battery: Replace Battery: Overload and Bypass Indicators |
| Audible Alarm | Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm |
| Emergency Power Off (EPO) | Optional |
| Available SmartSlot Interface Quantity | 1 |
| Surge Protection and Filtering | |
| Surge energy rating | 420Joules |
| Filtering | Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449 |
| Physical | |
| Dimension (Height x Width x Depth) | 432x85x483 mm |
| Net Weight | 23 kg |
| Color | Black |
| Master Carton Units | 1 |
| Units per Pallet | 6.0 |
| Environmental | |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95 (non-condensing) % |
| Operating Elevation | 0-3000meters |
| Storage Temperature | -20 - 50 °C |
| Storage Relative Humidity | 0 - 95 (non-condensing) % |
| Storage Elevation | 0-15000meters |
| Audible noise at 1 meter from surface of unit | 50.0dBA |
| Online thermal dissipation | 324.0BTU/hr |
| Protection Class | IP 20 |
- Bảo hành: 3 năm cho thiết bị (electronics) và 2 năm cho pin (battery).
