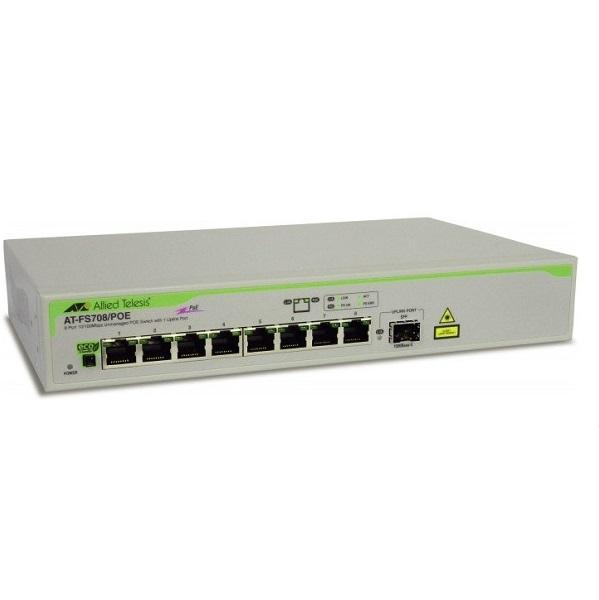

8-port 10/100TX Unmanaged PoE Switch ALLIED TELESIS AT-FS708/POE
- 8 10/100TX ports.
- 1 SFP uplink port.
- Auto detect and classification of PoE.
- PoE capable on all 8 10/100TX ports (4 @ 15.4W max).
- IEEE 802.3af standard.
- Non-blocking architecture.
- Auto-negotiation ports.
- Auto MDI/MDI-X on all ports.
- Plug and Play installation.
- Rack-mount, wall-mount and desktop hardware included.
Đặc tính kỹ thuật
| Performance | |
| Ethernet | 10Mbps (half-duplex), 20Mbps (full-duplex) |
| Fast Ethernet | 100Mbps (half-duplex), 200Mbps (full-duplex) |
| MAC addresses | 8K |
| Packet buffer | 768K |
| Support | Half/full-duplex, Auto-negotiation, Auto MDI/MDI-X on all ports |
| Interface Connections | 10/100TX, RJ-45, 1 x SFP |
| Standards and Compliance | |
| IEEE 802.3i | 10T Ethernet |
| IEEE 802.3u | 100TX Fast Ethernet |
| IEEE 802.3x | Flow control |
| IEEE 802.3af | Power over Ethernet, mode A |
| Power Characteristics | |
| Frequency | 50 to 60 Hz |
| Power requirements | 90 - 240 VAC |
| Power consumption | 90W max |
| PoE power | 48 VDC, 65 W |
| Switch and fan power | 12 VDC, 20 W |
| AC voltage/frequency requirements | 100 - 240 VAC, 50/60 Hz |
| AC input power consumption | Eco friendly mode enabled with no PoE power 6.4 W maximum |
| Eco friendly mode enabled with max PoE power 79.2 W maximum | |
| PoE power | Available Power over Ethernet: 65W @ 48vDC |
| IEEE 802.3af Class 3 (15.4 W): Max 4 ports | |
| IEEE 802.3af Class 2 (7.3 W): Max 8 ports | |
| IEEE 802.3af Mode: Alternative A (MDI) | |
| Environmental Specifications | |
| Operating temp | 0 to 40ºC |
| Non-operating temp | -25 to 70ºC |
| Operating humidity | 10-90% non-condensing |
| Non-operating humidity | 5-95% non-condensing |
| Physical Characteristics | |
| Dimensions | 26.5 x 16.2 x 4.3 cm |
| Weight | 1.90 kg |
- Bảo hành: 12 tháng.
