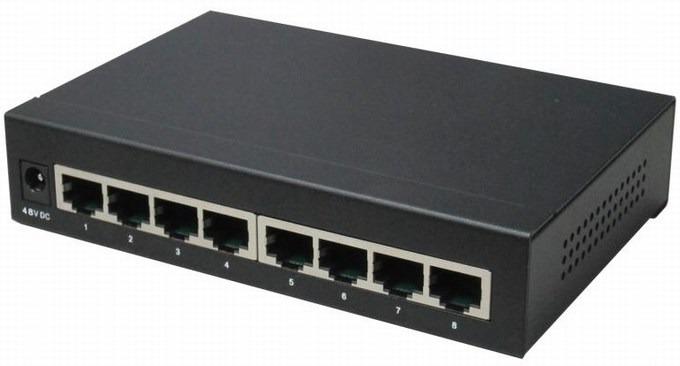

8-Port 10/100Mbps PoE Switch IONNET IFE-808 (65Watt)

8-Port 10/100Mbps PoE Switch IONNET IFE-808 (65Watt)

  • MS 000006696
  • IONNET
Giá : Liên hệ

8-Port 10/100Mbps PoE Switch IONNET IFE-808 (65Watt)

8-Port 10/100Mbps PoE Switch IONNET IFE-808 (65Watt)

- Bao gồm 8-Port PoE, công suất 65 Watt.

- Nguồn điện: 48VDC.

- 8 port 10/100Mbps TX with 8 Port PSE Ethernet Switch

- Complies with IEEE802.3 10Base-T

- Complies with IEEE802.3u 100Base-TX

- Complies with 802.3x Flow Control

- Complies with IEEE-802.3az Green Ethernet

OverView

- IFE-808 (65) series are 8 10/100M port Power over Ethernet switch which consists of 8 PSE/PoE ports. The models comply with 802.3af. It defines new green power saving idea on PSE Port. That can solve the limitation of the power outlet location and offer the system relocation easily. The case is designed for home user and small area application.

Features

- 8 ports 10/100Mbps with 8 PSE ports

- Complies with IEEE802.3 10Base-T

- Complies with IEEE802.3u 100Base-TX

- Complies with 802.3x Flow Control

- Complies with IEEE-802.3az Green Ethernet

- Complies with IEEE-802.3af

- Max. 30Watt each PSE/PoE port

- Broadcast storm control

- Auto-learning networking configurations

- 4K MAC table/ 96K bytes buffer memory

- Packet length Max. 1600 bytes

- 9K Jumbo frame

- LED indicators: System Power, Link/Activity and PoE/PSE

- External power supply: 48V DC input

- Power Consumption : 5Watt

- Maximum Supply PoE Power per device: 65 Watt

- Operating Temperature: 0℃ ~55℃

- Storing Temperature: -20℃ ~ 90℃

- Humidity: 10% ~90% RH (Non-condensing)

- Dimension (L x W x H): 141*94*30 mm

- Weight: 323 g

- Safety & EMI Certificates: CE & FCC

- Smart plug & play

PoE+ Green power Management Features

- Link up mode: auto detects the level class of Power device, budgets power output for each port.

- Power down mode: auto detect no link/ standby of Power device

Specification

Standards

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX/100BaseFX

Features

Number of Ports:
8 10/100BaseT with RJ-45 Connector
8 port PoE ports

Data Transfer Rate

Ethernet:
10Mbps/Half-Duplex
20Mbps/Full-Duplex
Fast Ethernet:
100Mbps/Half-Duplex
200Mbps/Full-Duplex

Transmission Media

10BaseT Cat. 3, 4, 5 UTP/STP, up to 100 m
100BaseTX Cat. 5 UTP/STP, up to 100 m

Led Indicators

Per Port:
(TX): Link/Act,
Per Unit: Power, PoE function

Power Requirement

48V DC in

Maximum Supply PoE per Device

65Watt

Power Consumption

5 Watt

Dimensions

141 x 94 x 30 mm (L x W x H)

Weight

323 g

Operating Temperature

0 to 55℃

Storage Temperature

-20 to 90℃

Humidity

10 to 90% RH (non-condensing)

Certifications

FCC Class A , CE

Sản xuất tại Taiwan.

Bảo hành: 12 tháng.
