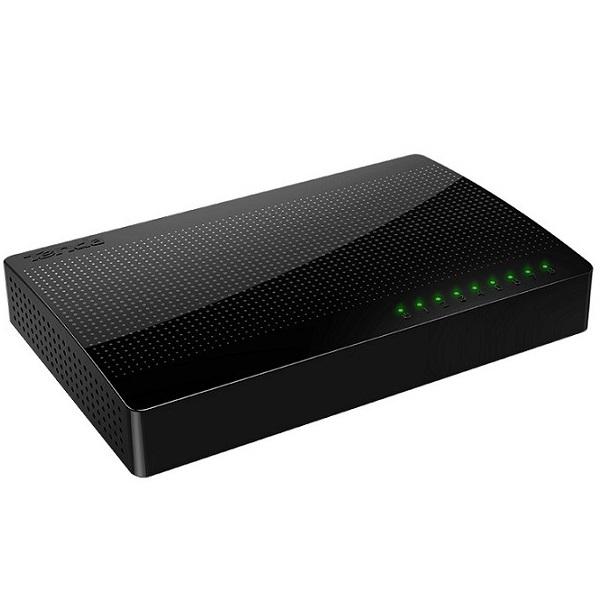

8-port 10/100/1000Mbps Switch TENDA SG108
-8-Port Gigabit Desktop SOHO switch.
-It provides 8 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend to the uplink network.
-Compared with a 100M switch, It enhances transmission speed by up to 10 times, eliminating the bottleneck of cascading network bandwidth.
-It supports desktop installation and wall-mounting.
Đặc tính kỹ thuật
| Model | SG108 |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Intertface | 8 x 10/100/1000M auto-negotiationRJ45 ports (Auto MDI/MDIX) |
| Transmission Media | Recommend Cat.5e UTP or better (<100 meters ) |
| Forwarding Speed | 10Mbps: 14880pps 100Mbps: 148800pps |
| 1000Mbps: 1488000pps | |
| Power Supply | Input: AC: 100-240V; 50/60Hz. Output: 9.0V 0.6A (External Power Adapter) |
| Product Dimensions | 142 x 90 x 24mm |
| LEDs | 1 x Power, 8 x Link/Act |
| Switching Capacity | 16Gbps |
| MAC Address Table | 4K |
| Power Consumption | Maximum: 4W (9VDC) |
| Transfer Method | Store and Forward |
| Access Control | CDMA/CD |
| MAC Address Learning | Automatic update |
| Temperature | Operating Temperature: 0℃~40℃ |
| Storage Temperature: -40℃~70℃ | |
| Humidity | Operating Humidity: 10%~90% non-condensing |
| Storage Humidity: 5%~90% non-condensing | |
| Certification | CE, FCC, RoHS |
| Compatible OS | Windows 8 32/64 bit, Windows 7 32/64 bit, Windows xp 32/64 bit, Linux, MAC OS |
-Bảo hành: 36 tháng.
