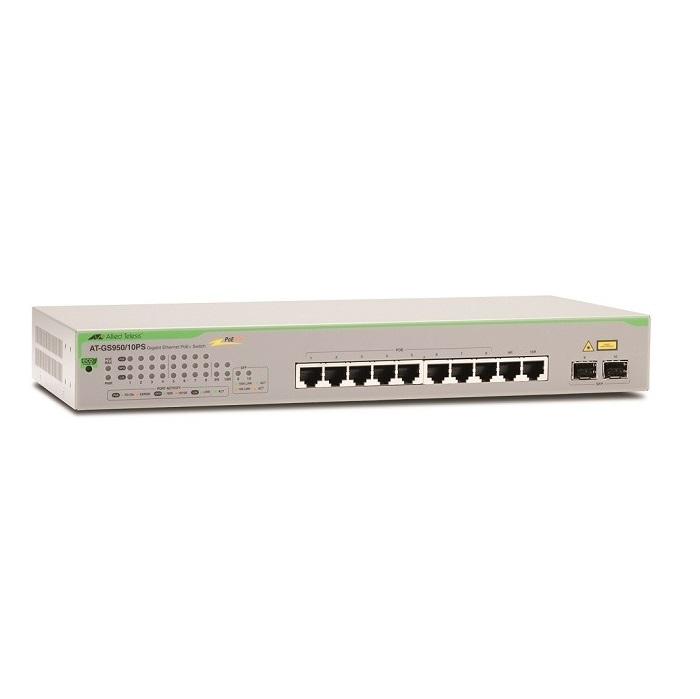

8-port 10/100/1000 (PoE+) + 2 combo Gigabit SFP Switch ALLIED TELESIS AT-GS950/10PS
- 8 ports 10/100/1000 (PoE+) + 2 ports combo Gigabit SFP.
- Web-based configuration.
- CLI configuration on GS950PS Series.
- SNMP trap view.
- LLDP.
- Firmware upgrade by FTP and HTTP.
- Configuration backup/restore by FTP and HTTP.
- Factory reset.
- Password access control and restricted.
- IP access list.
- SNMPv1/v2c/v3.
- DHCP client.
- Syslog support.
- System time configuration (SNTP, manual).
- Statistics Charts in Web.
Đặc tính kỹ thuật
| Performance | |
| Ethernet | 14880pps for 10Mbps |
| Fast Ethernet | 148800pps for 100Mbps |
| 1488000pps for 1000Mbps Ethernet | |
| MAC addresses | 8K |
| VLAN IDs available | 4K |
| Max VLANs | 256 |
| DRAM | 64 MB |
| Flash | 16 MB |
| Packet bufer | 1 MB |
| Switching fabric | 20 Gbps |
| Forwarding Rate | 14.88 Mpps |
| Interface connections | |
| 10/100/1000T | RJ-45 |
| 100TX, 100FX, 1000T, 1000SX or 1000LX | SFP |
| Power characteristics | |
| Frequency | 50-60 Hz |
| Power requirements | 100-240 VAC |
| Max power consumption | 14.44W (No PoE load), 92.7W (Full PoE+ load) |
| Max heat dissipation | 49.27 BTU/h (No PoE load), 316.31 BTU/h (Full PoE+ load) |
| Poe power budget | 75 W |
| Environmental Specifications | |
| Operating temperature | 0 to 45ºC |
| Non-operating temperature | -25 to 70ºC |
| Operating humidity | 5% to 90% non-condensing |
| Storage humidity | 5% to 95% non-condensing |
| Vibration | IEC 68-2-36 |
| Shock | IEC 68-2-29 |
| Drop | IEC 68-2-32 |
| Flammability | UL94V-0 |
| Environmental compliance | RoHS, China RoHS, WEEE, Eu-RoHS |
| Physical Characteristics | |
| Dimensions | 44 × 330 × 200 mm |
| Weight | 1.9 kg |
- Bảo hành: 12 tháng.
